Description

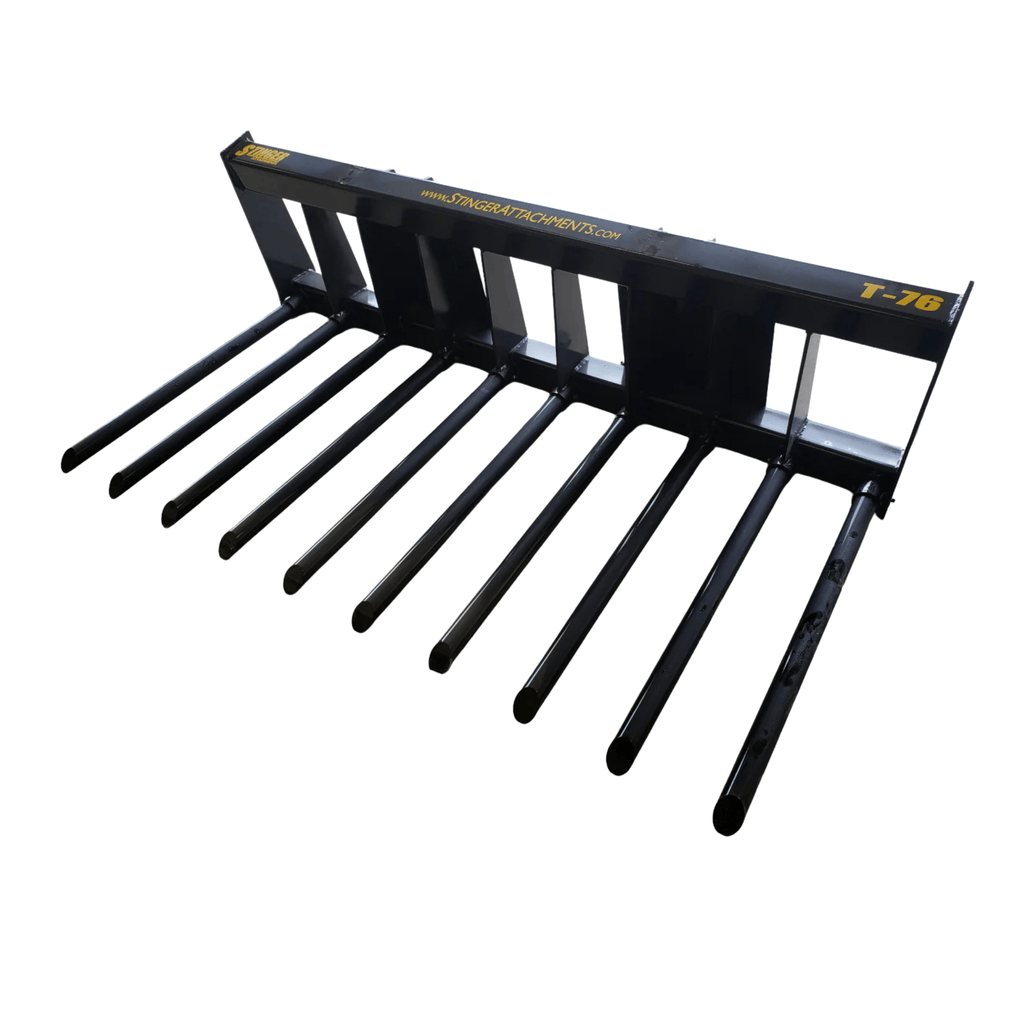

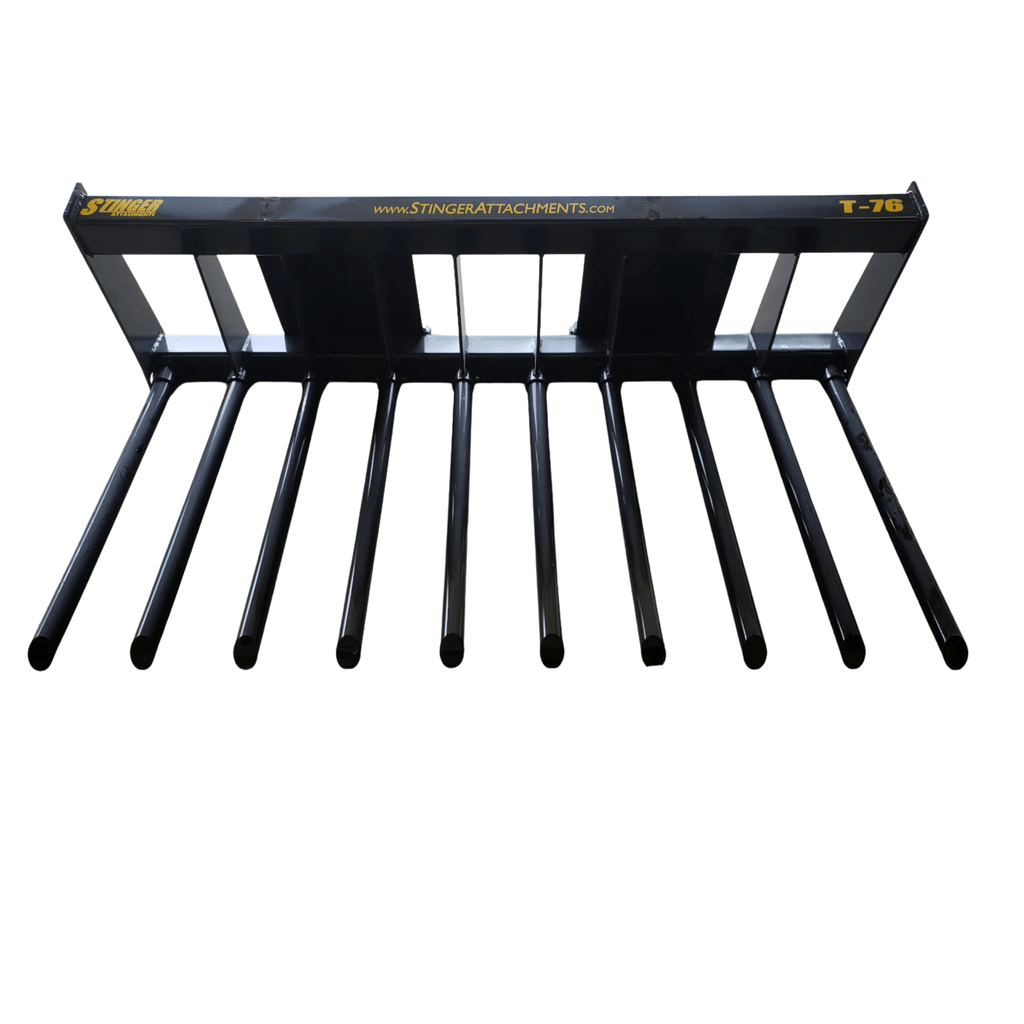

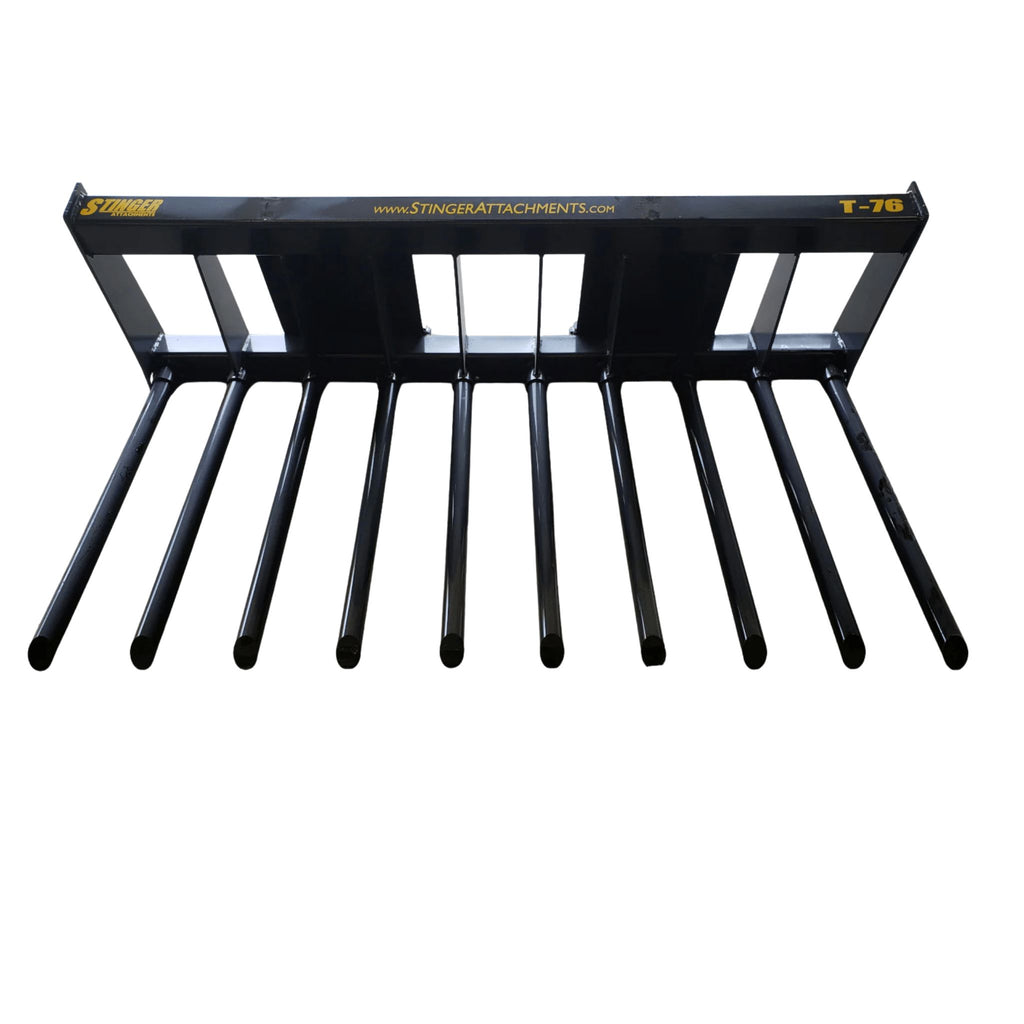

The Livestock Producer's Essential: The Stinger Attachments Manure Tine Bucket is engineered to penetrate loose or matted material effortlessly. Whether you are breaking up compacted bedding, moving silage, or clearing brush, the pointed tine design allows for easy entry and separation.

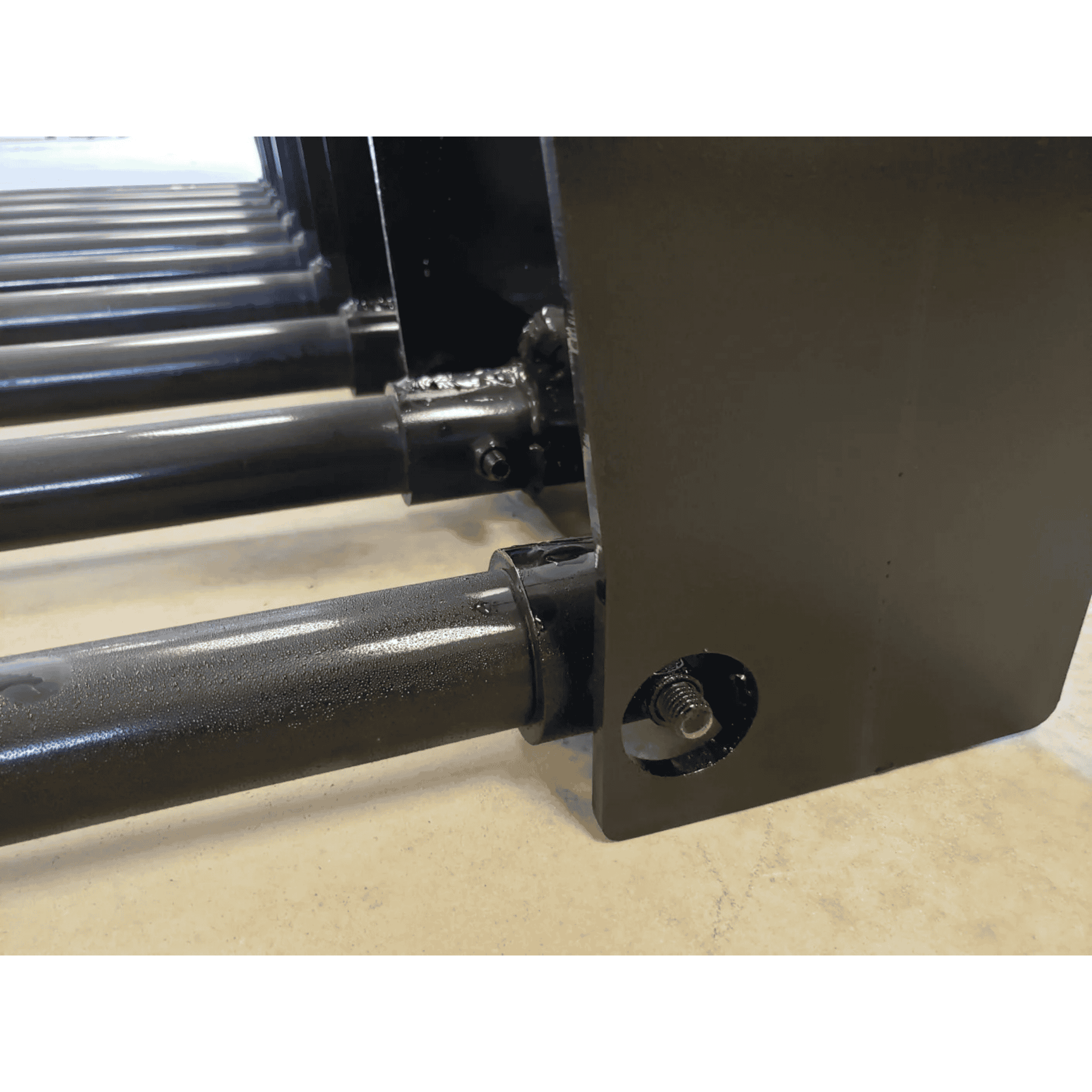

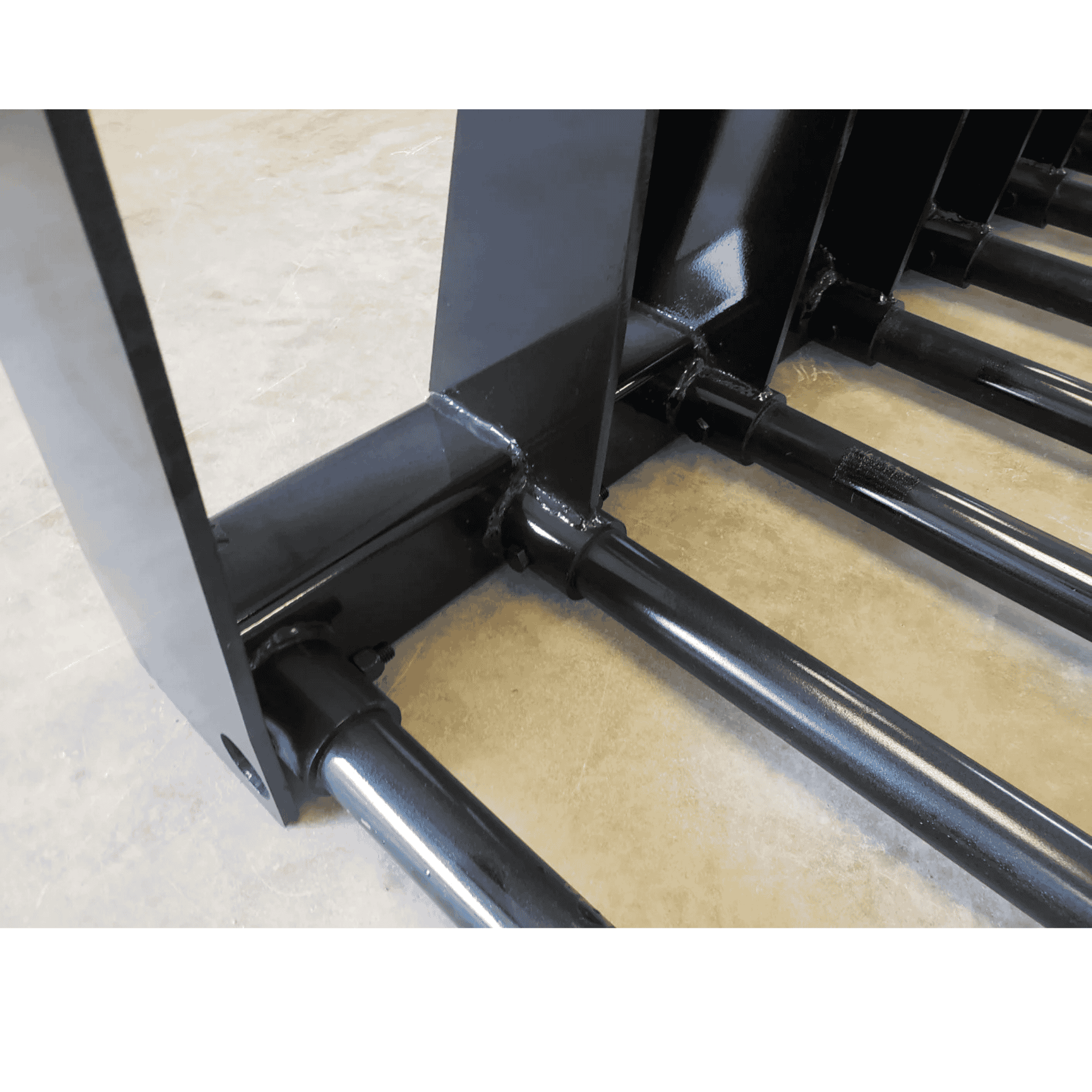

Built to Last, Easy to Repair: Unlike cheap forks with welded pipes, Stinger uses solid 2" Diameter Cold Rolled Steel Tines. These are tough enough to handle prying forces, but in the rare event of damage, every tine is Fully Replaceable. You don't need a welder to fix this bucket—just a wrench.
⚙️ Technical Specifications
Tine Material: 2" Cold Rolled Steel (Solid)
Tine Length: 40" Usable Length
Spacing: 8" On Center (6" Opening)

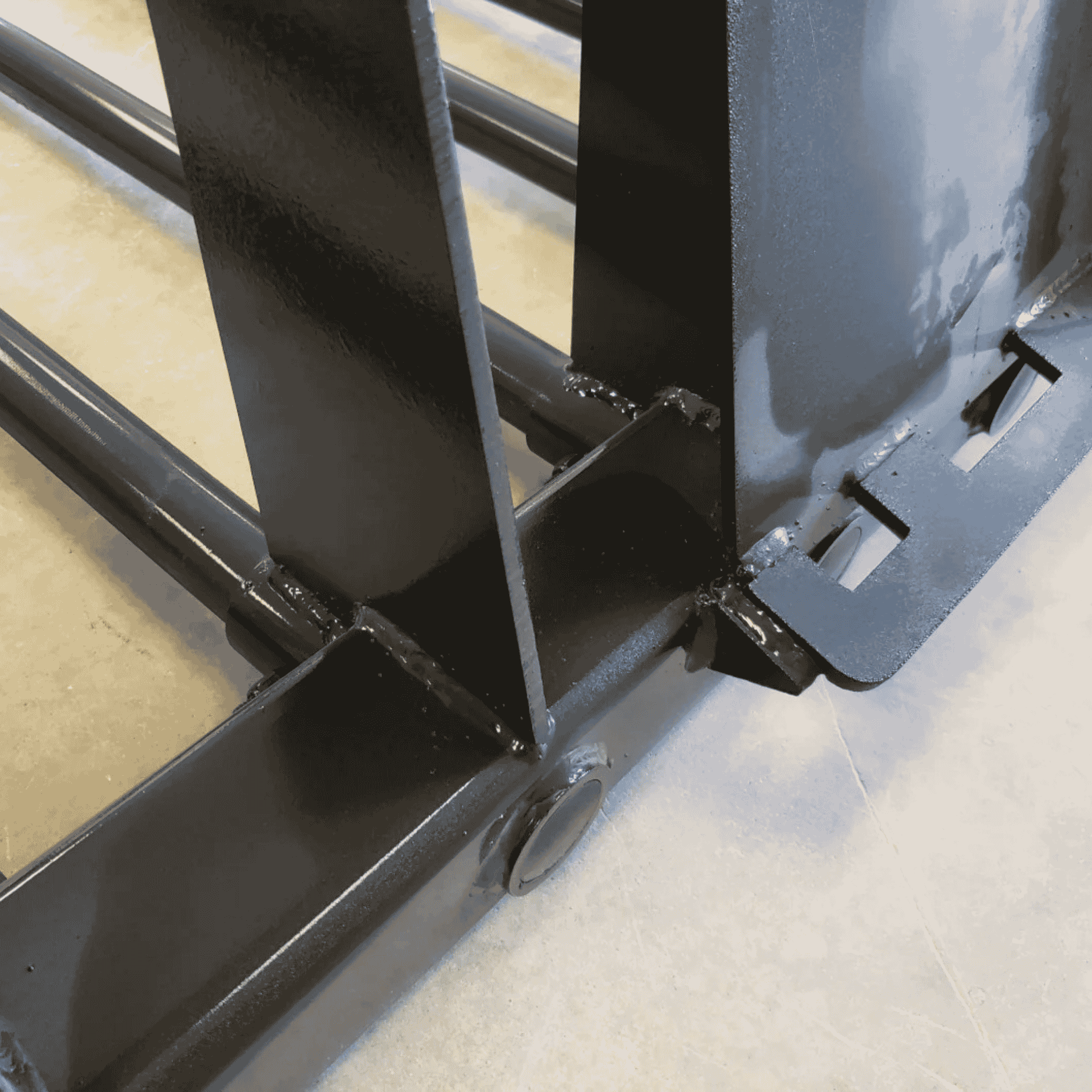

Frame: 4" x 4" x 1/4" Main Tubing
Steel Grade: Grade 50 Structural Steel
Maintenance: Fully Replaceable Tines
Warranty: 1 Year Structural
⚠️ Back Style Selection
Open Back (Standard): Offers superior visibility to the tines for precision work.
Closed Back (+$150): Features a solid steel plate at the back to prevent loose manure, silage, or debris from falling back onto the attachment coupler.
✅ Size Guide
60" & 68": Ideal for Compact Tractors and Small Skid Steers.
76" & 84": Ideal for Standard Skid Steers and Utility Tractors (matches tire width of most 74HP machines).
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Shipping Dimensions (LxWxH) | 60x46x23 |
