Description
Don't Waste Your Lift Capacity
Small machines have limits. The Stinger Compact Grapple Series is engineered with high-strength AR200 Steel to provide maximum durability at the lowest possible weight. By shedding dead weight, Stinger allows your 25-50 HP tractor or mini skid to lift more payload with every cycle.
Choose Your Tool:

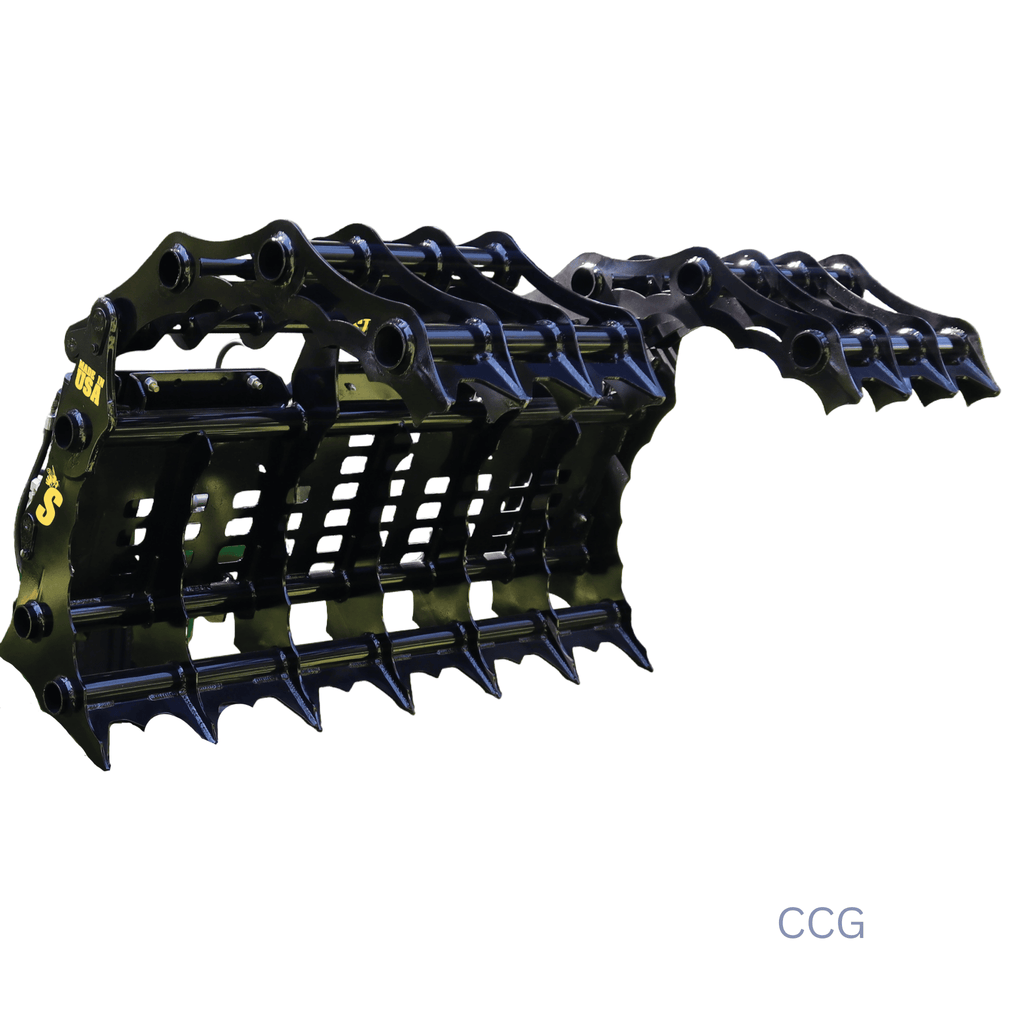

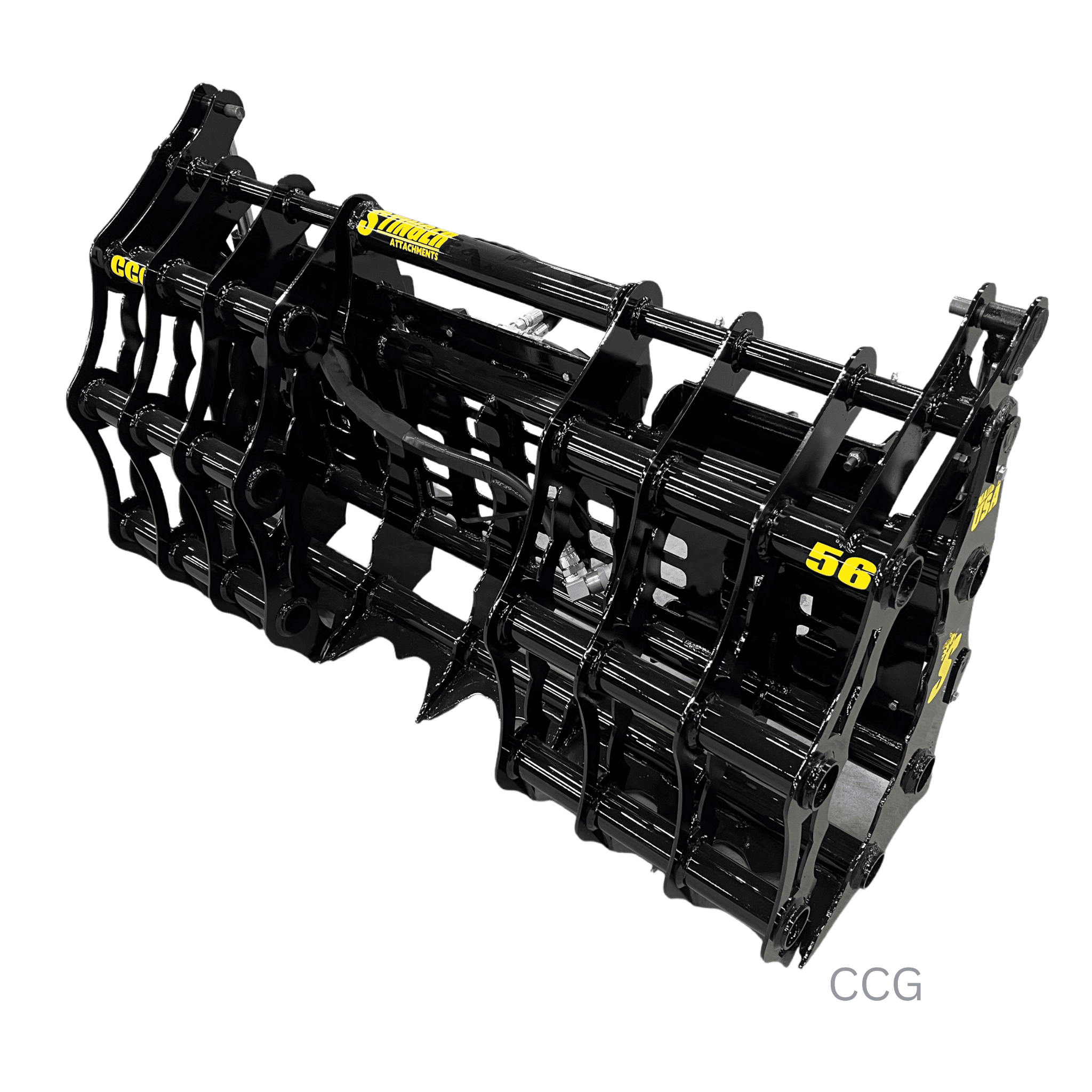

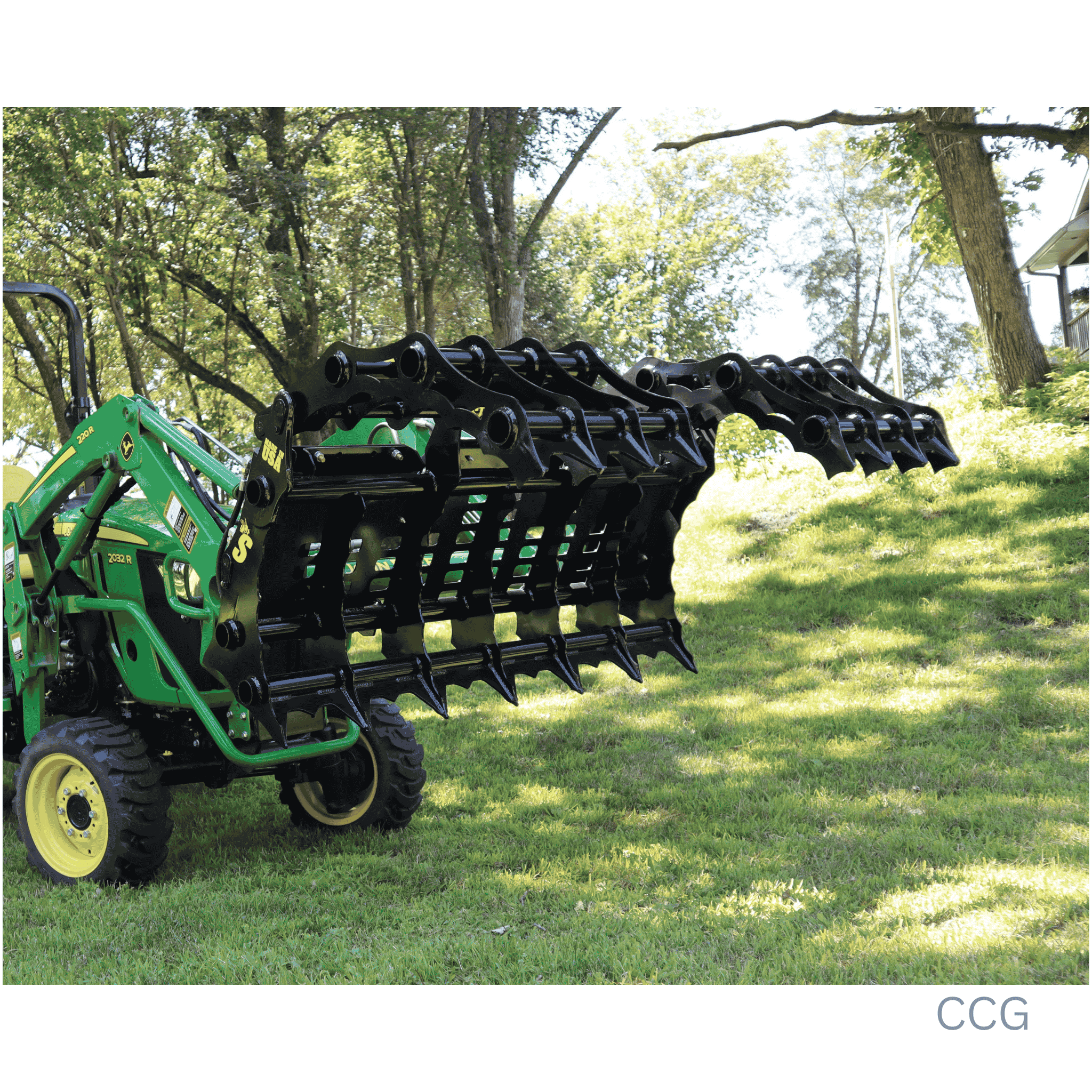

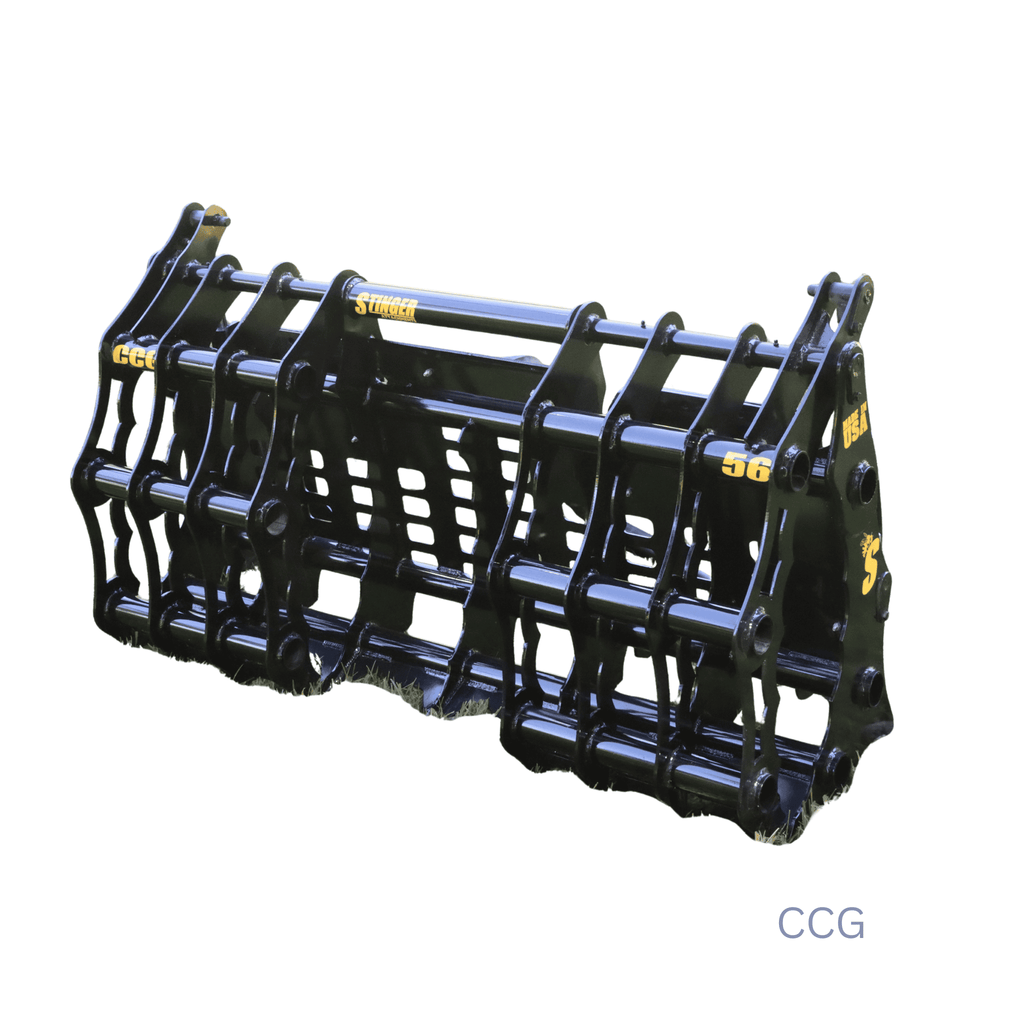

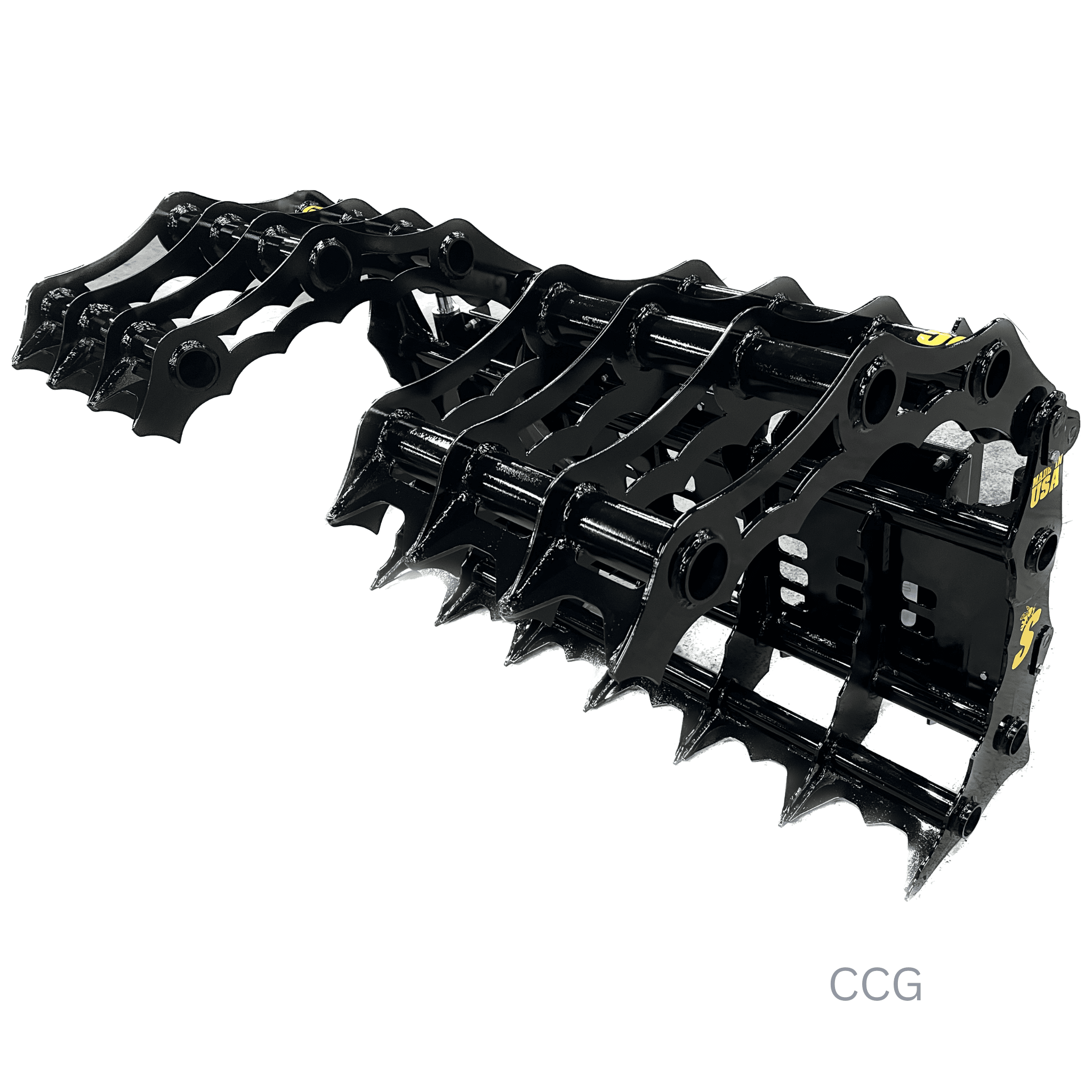

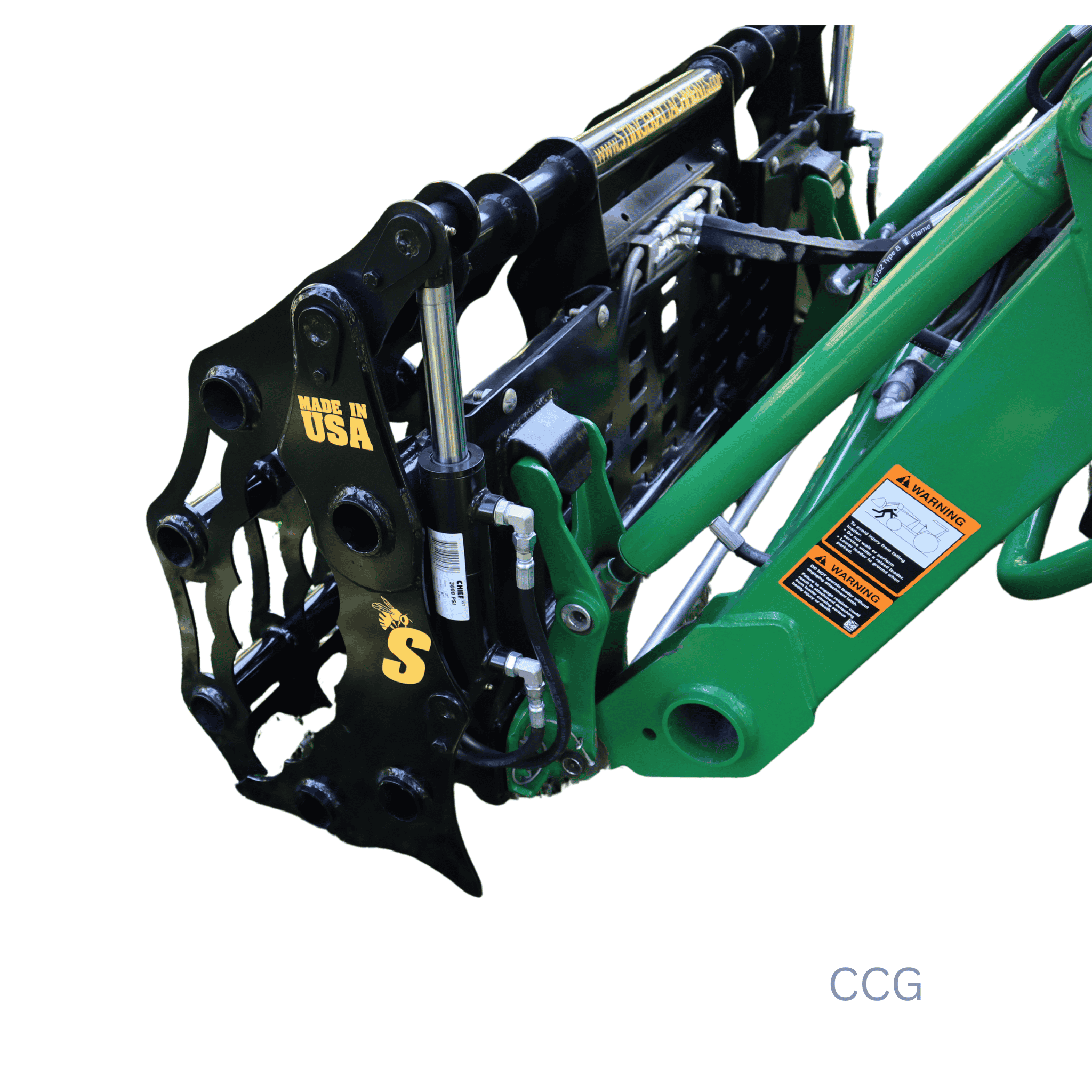

Compact Clam (CCG): The bulk handler. Features a wide 35" opening and 9" tine spacing. Perfect for moving manure, hay, brush piles, and volume material.

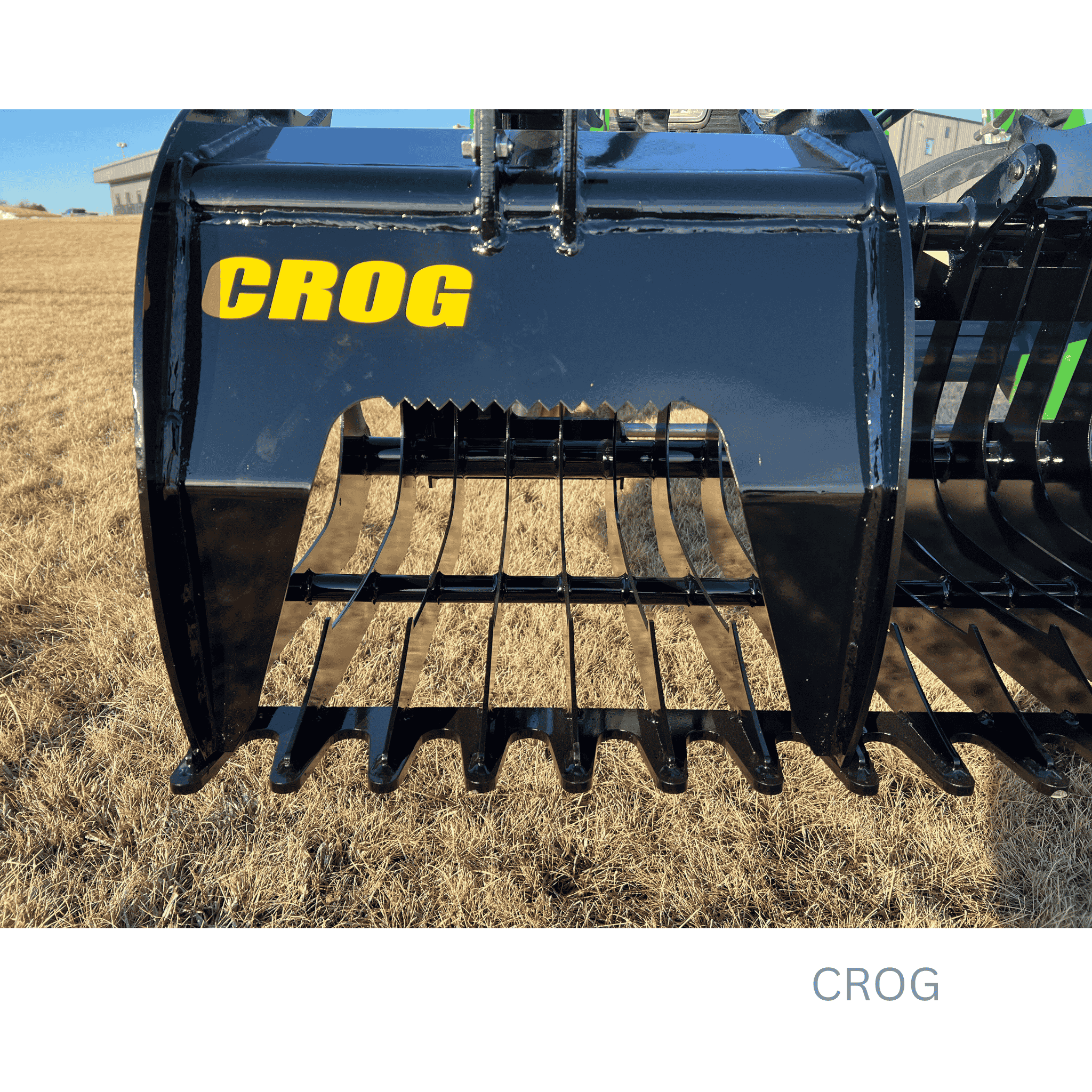

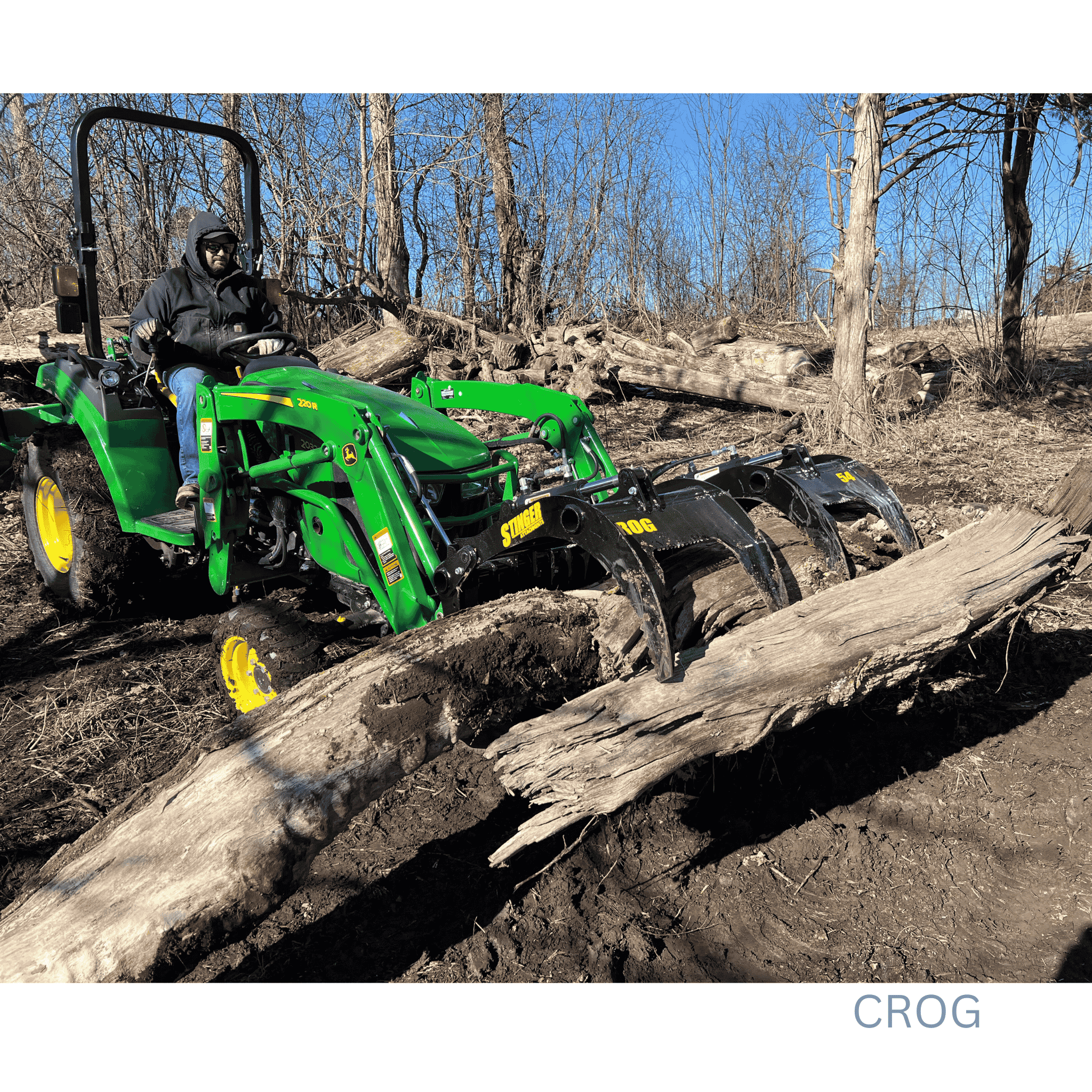

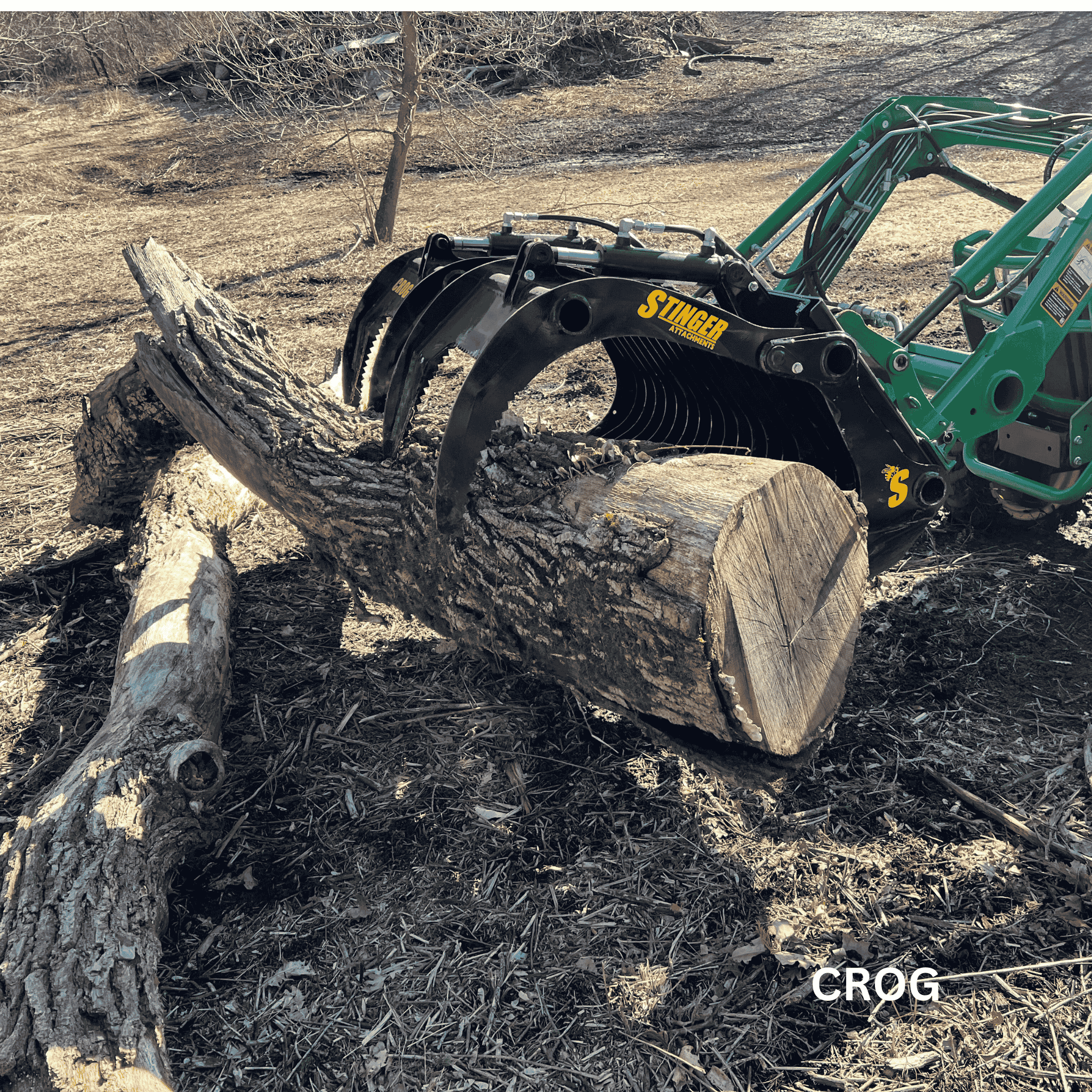

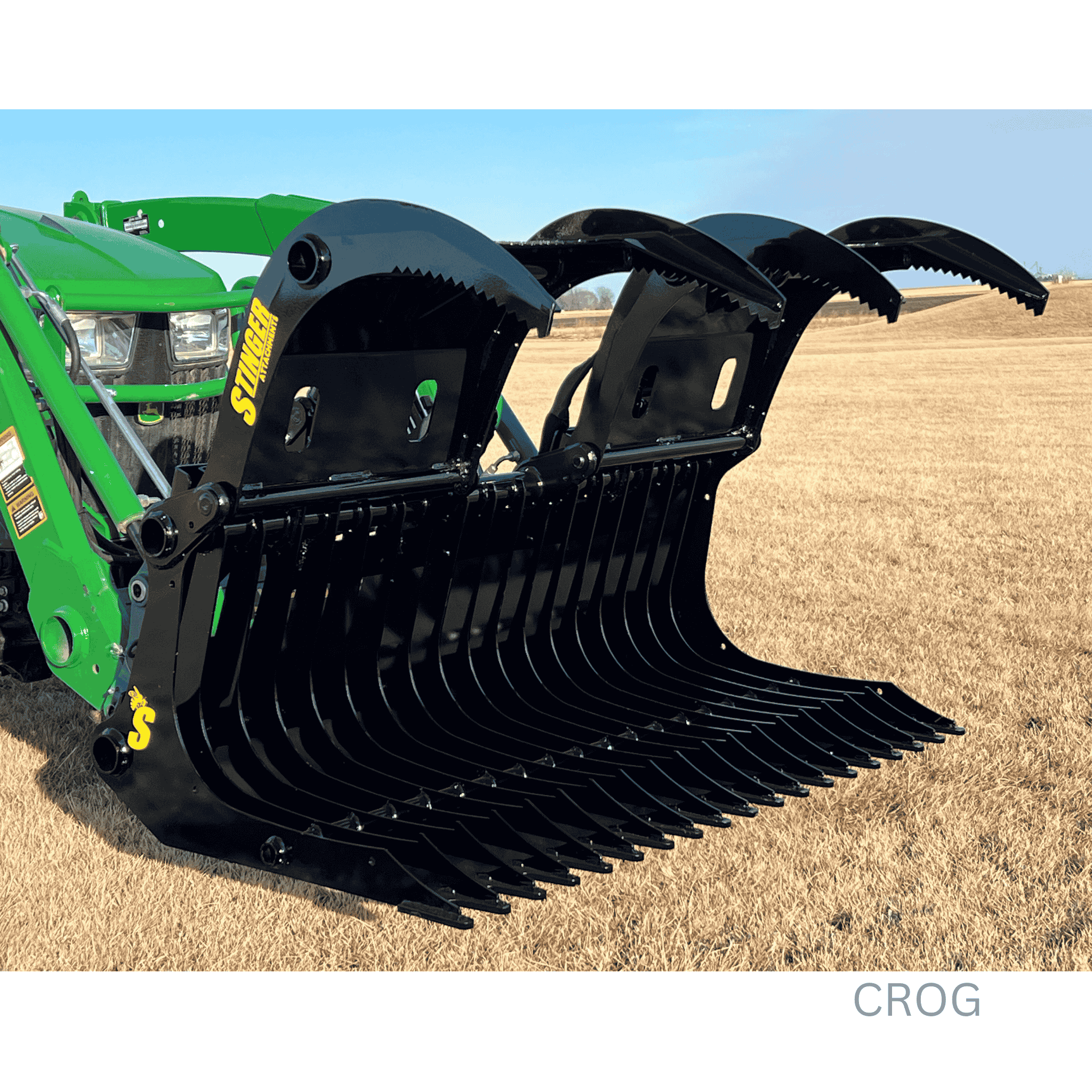

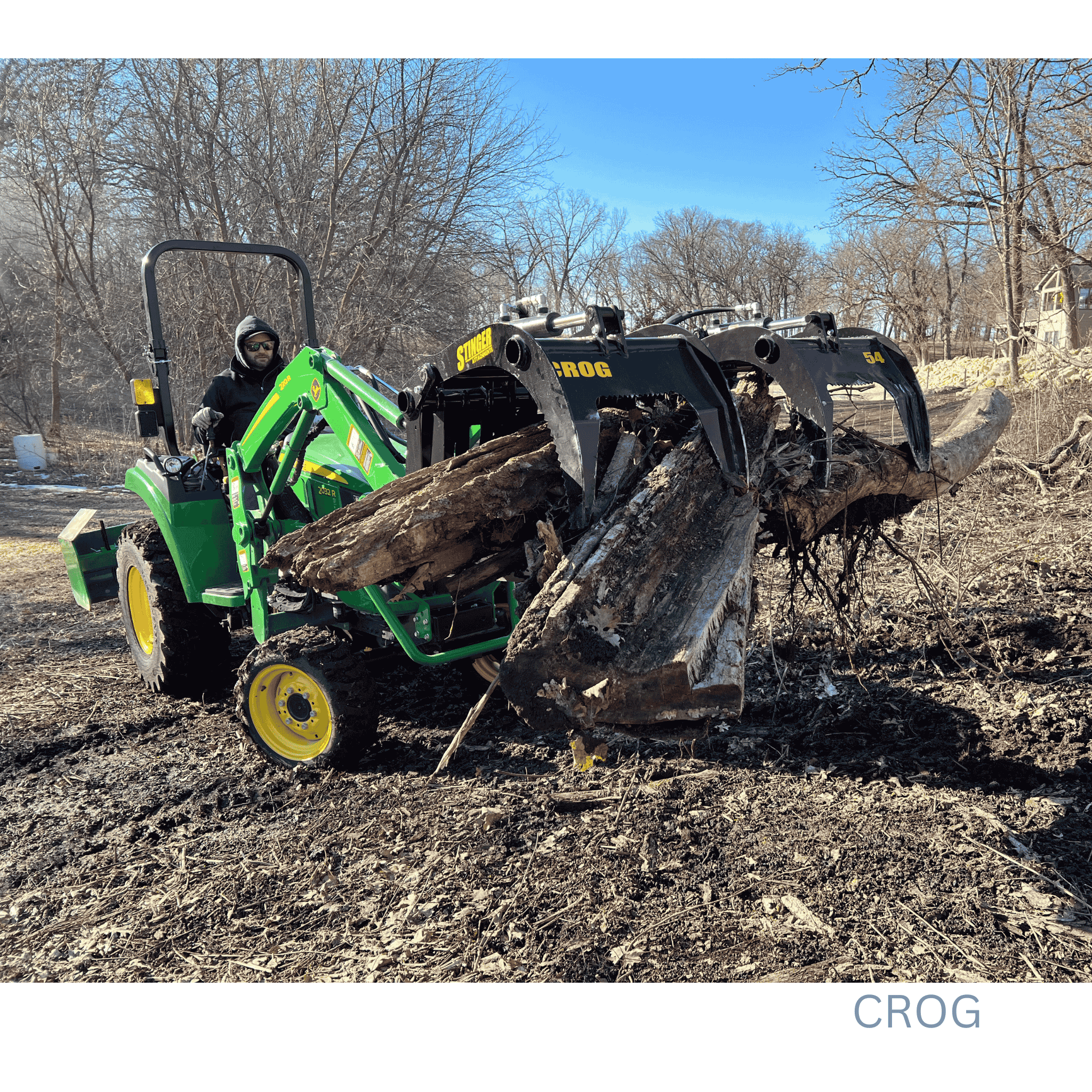

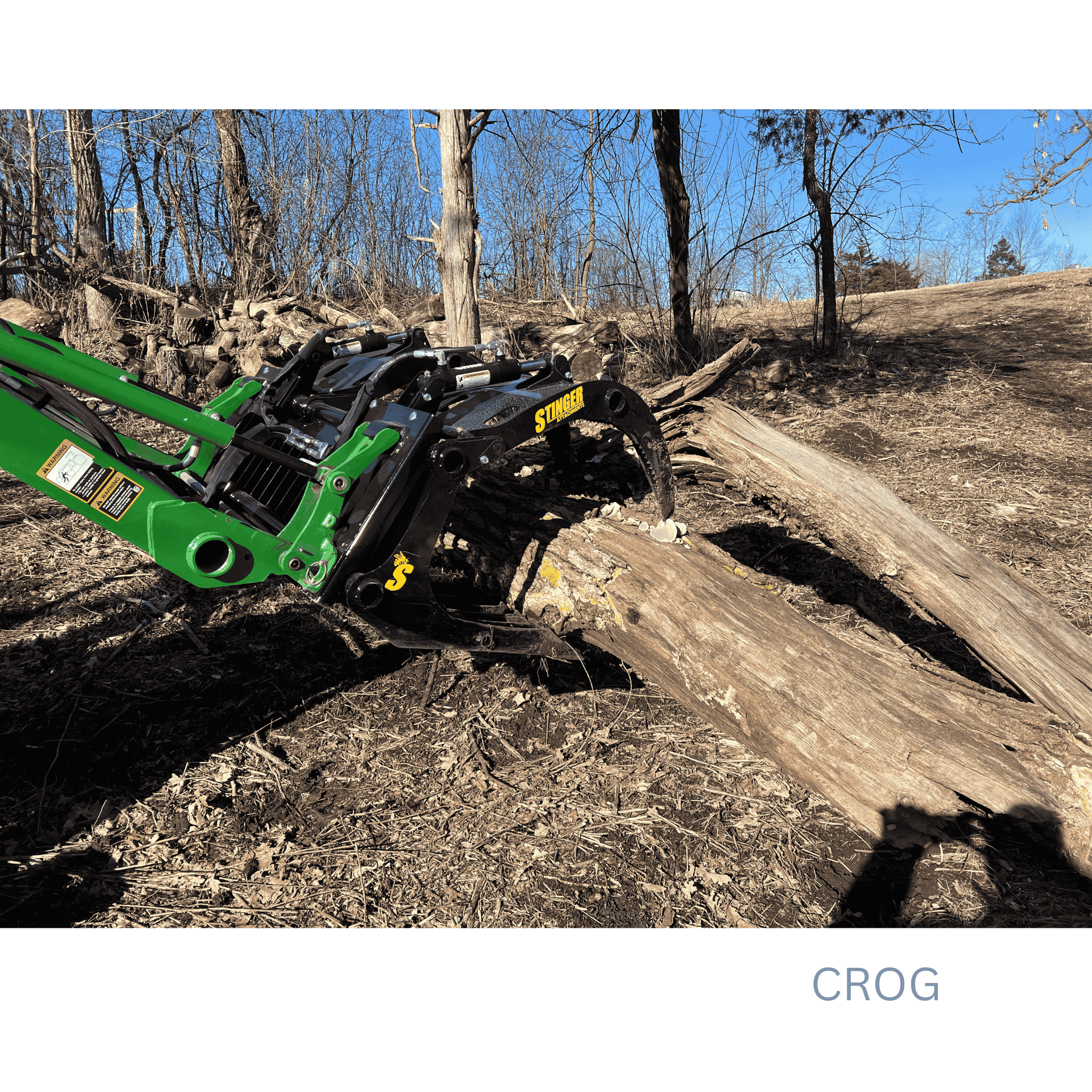

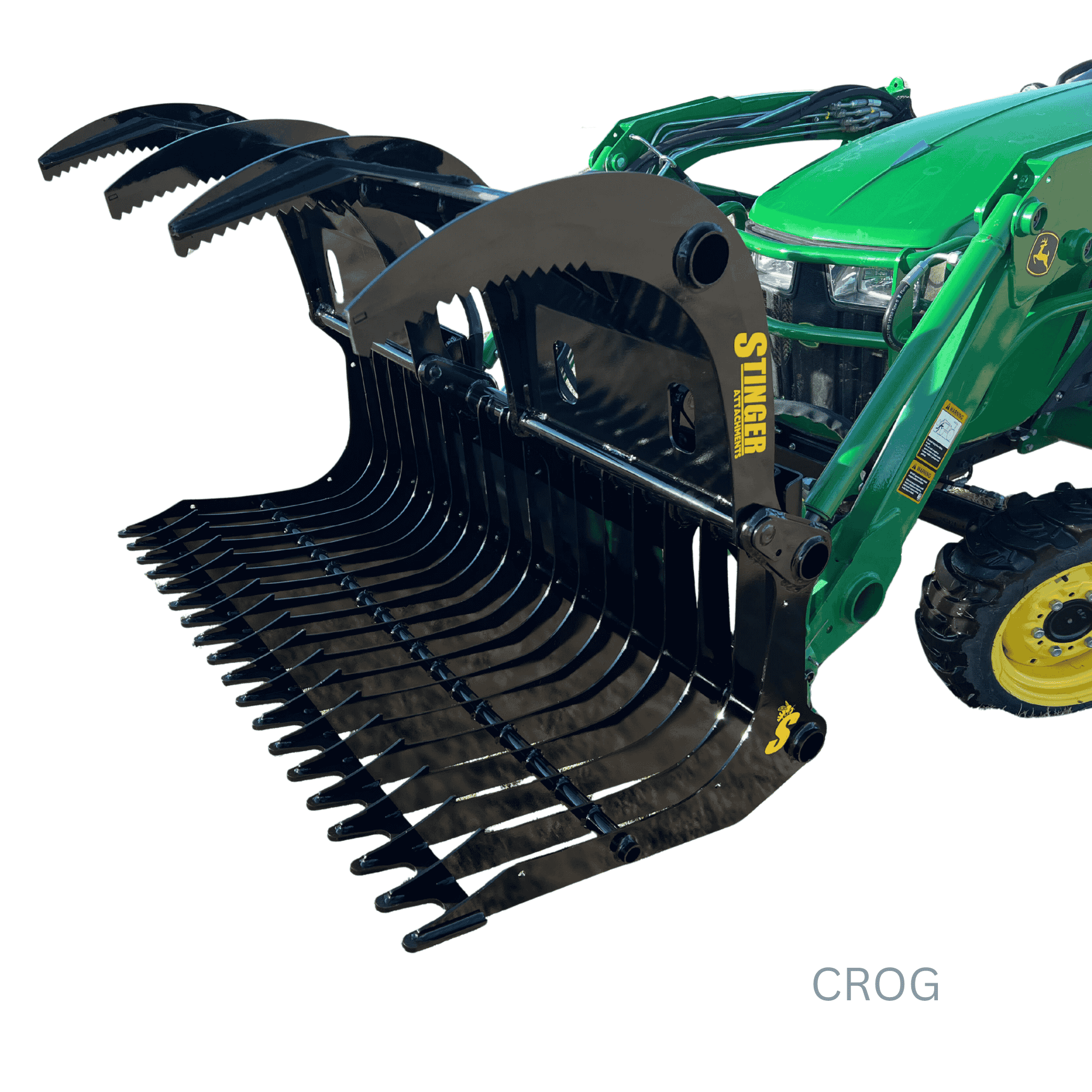

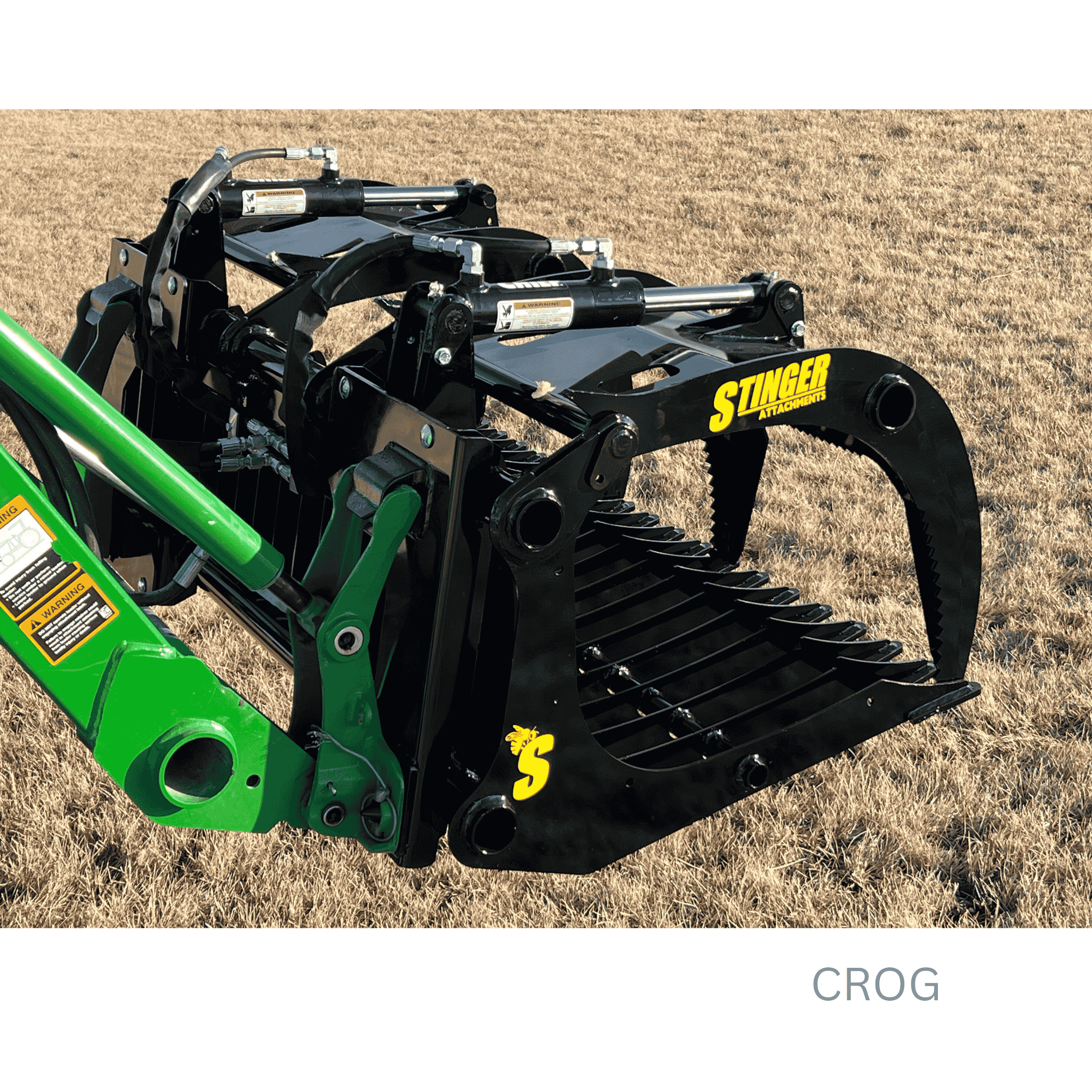

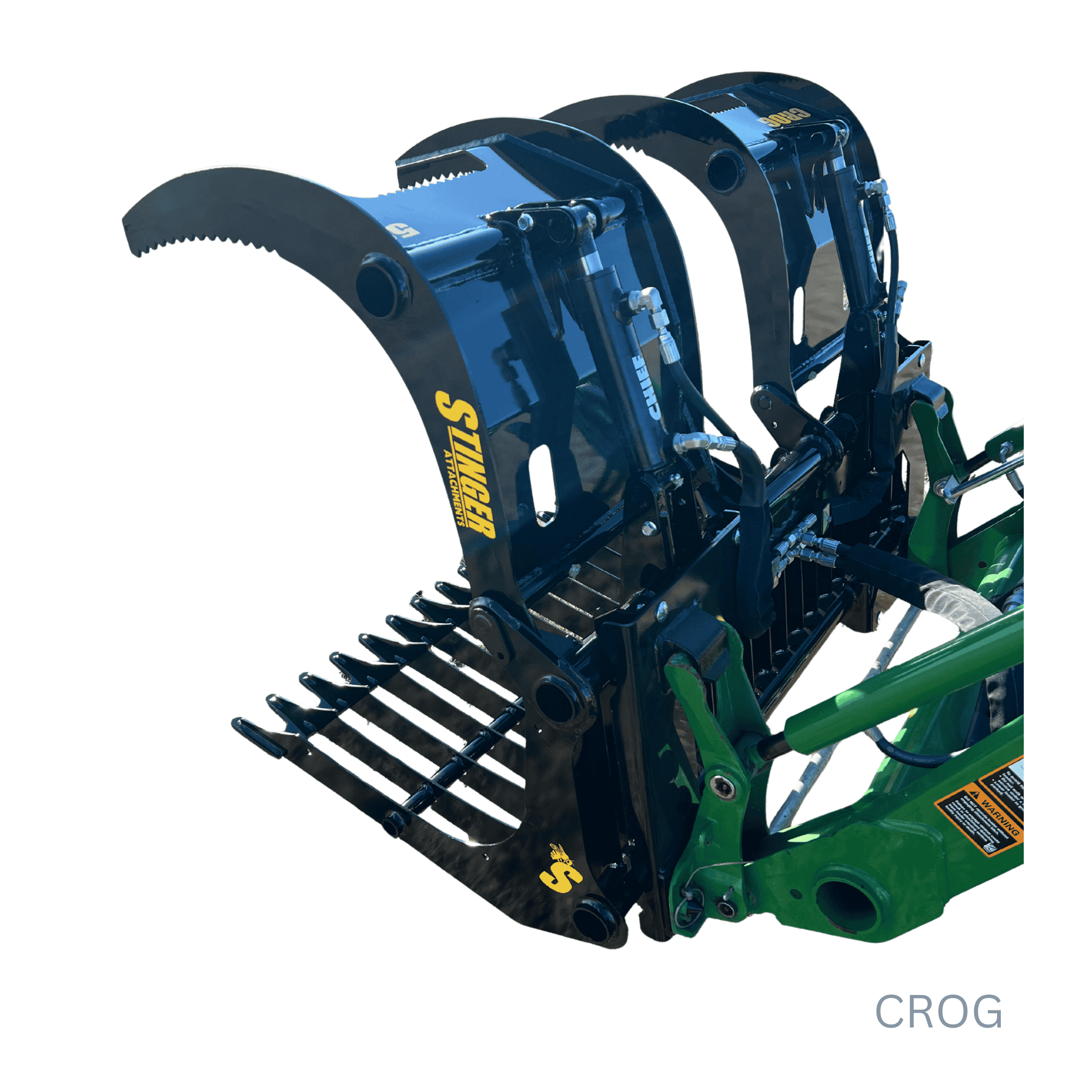

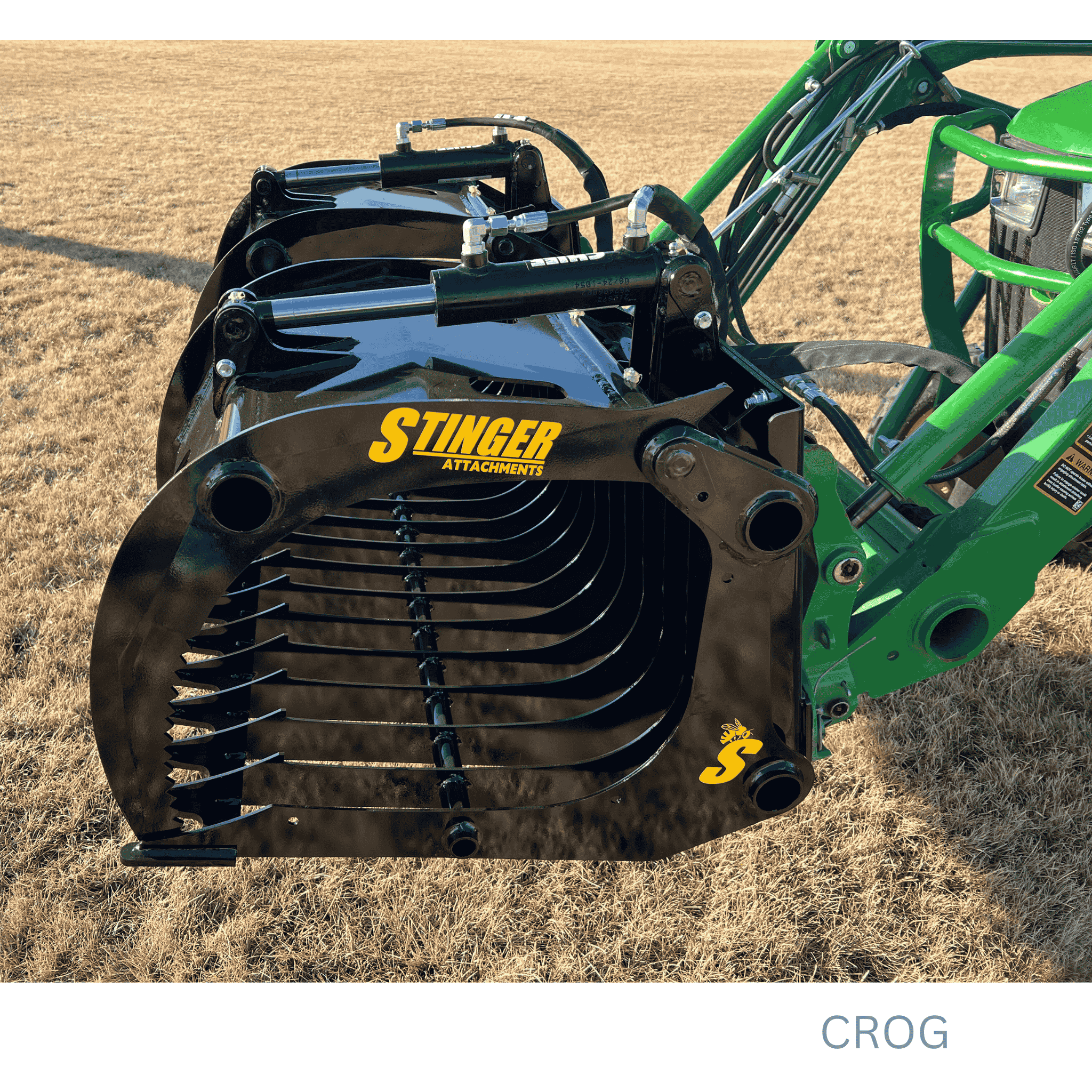

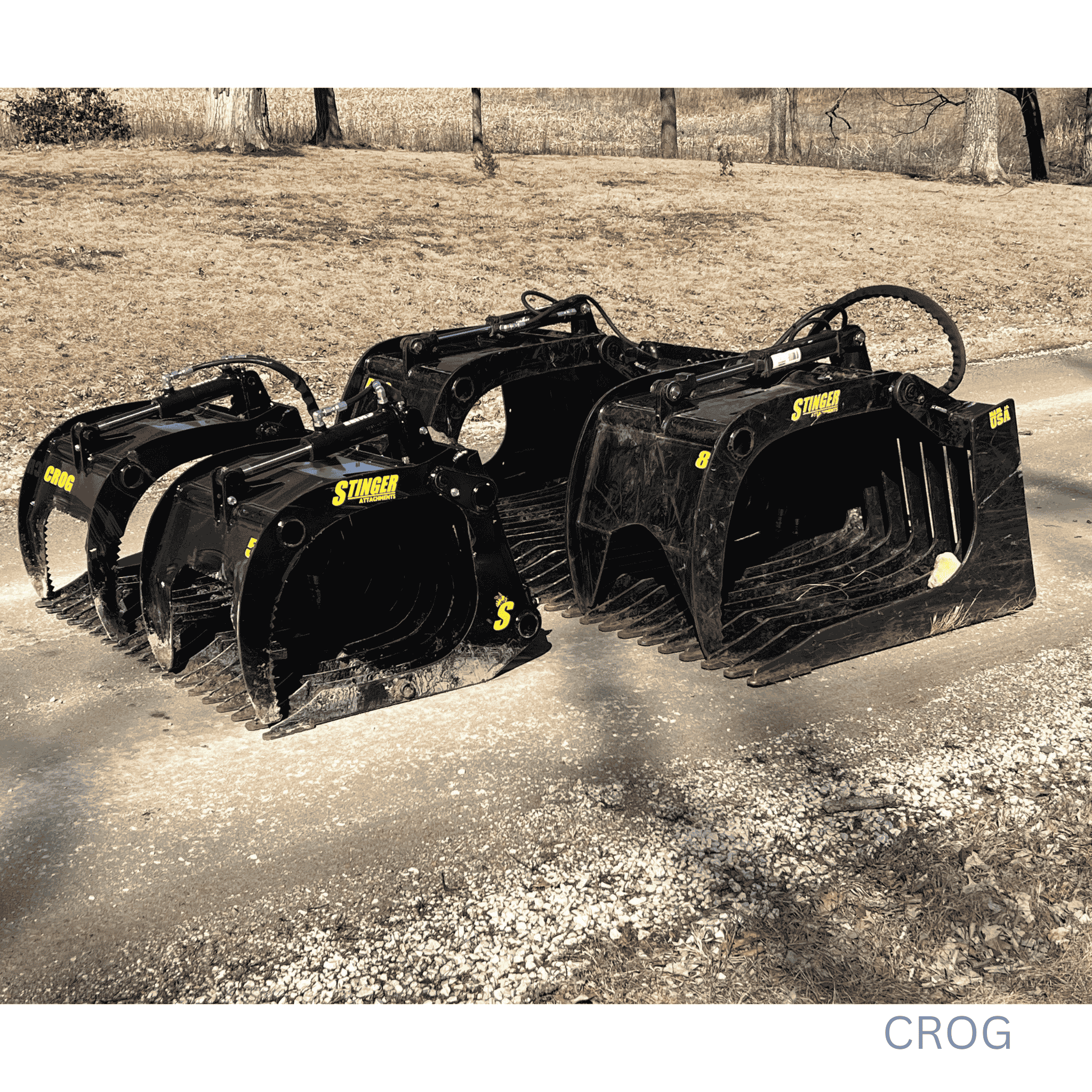

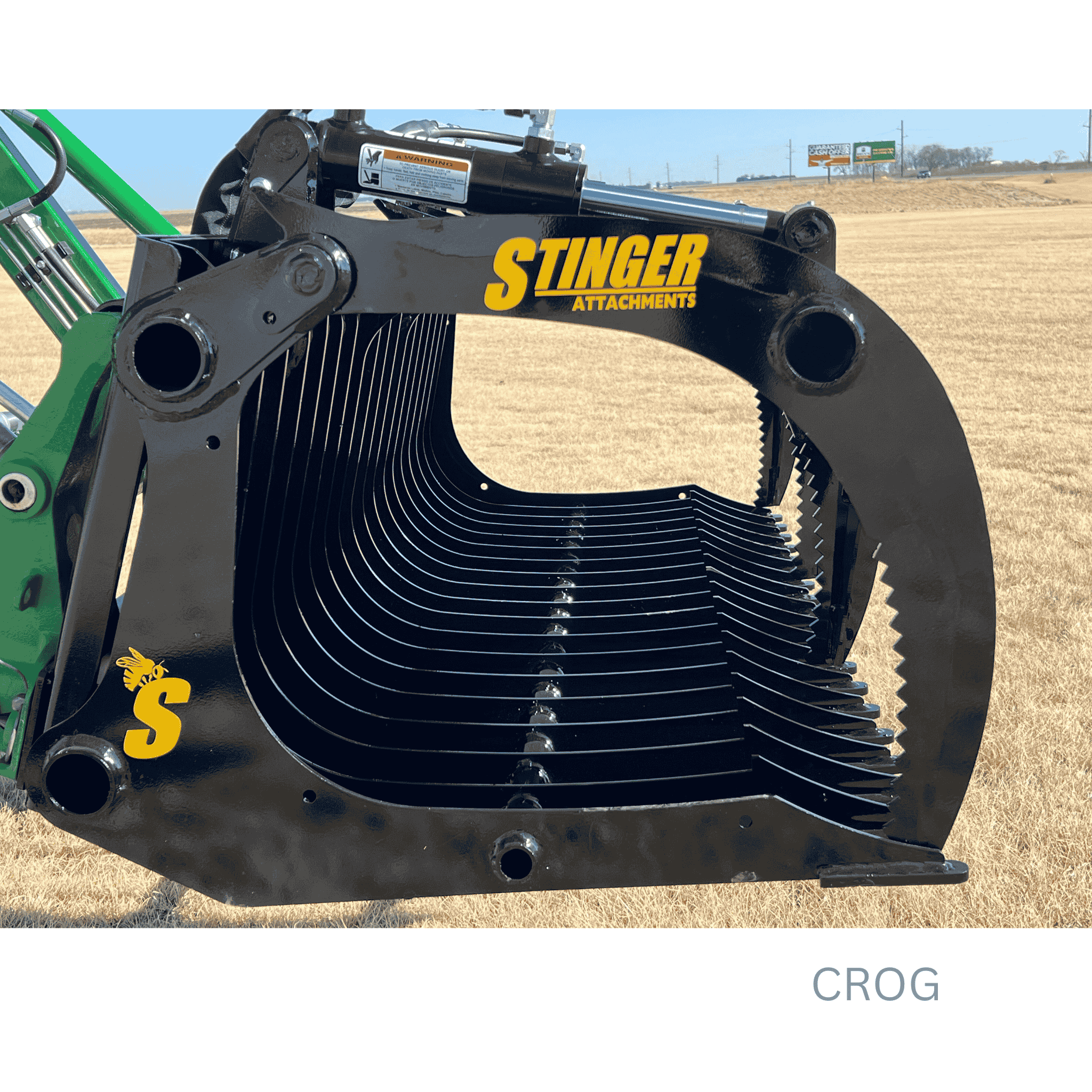

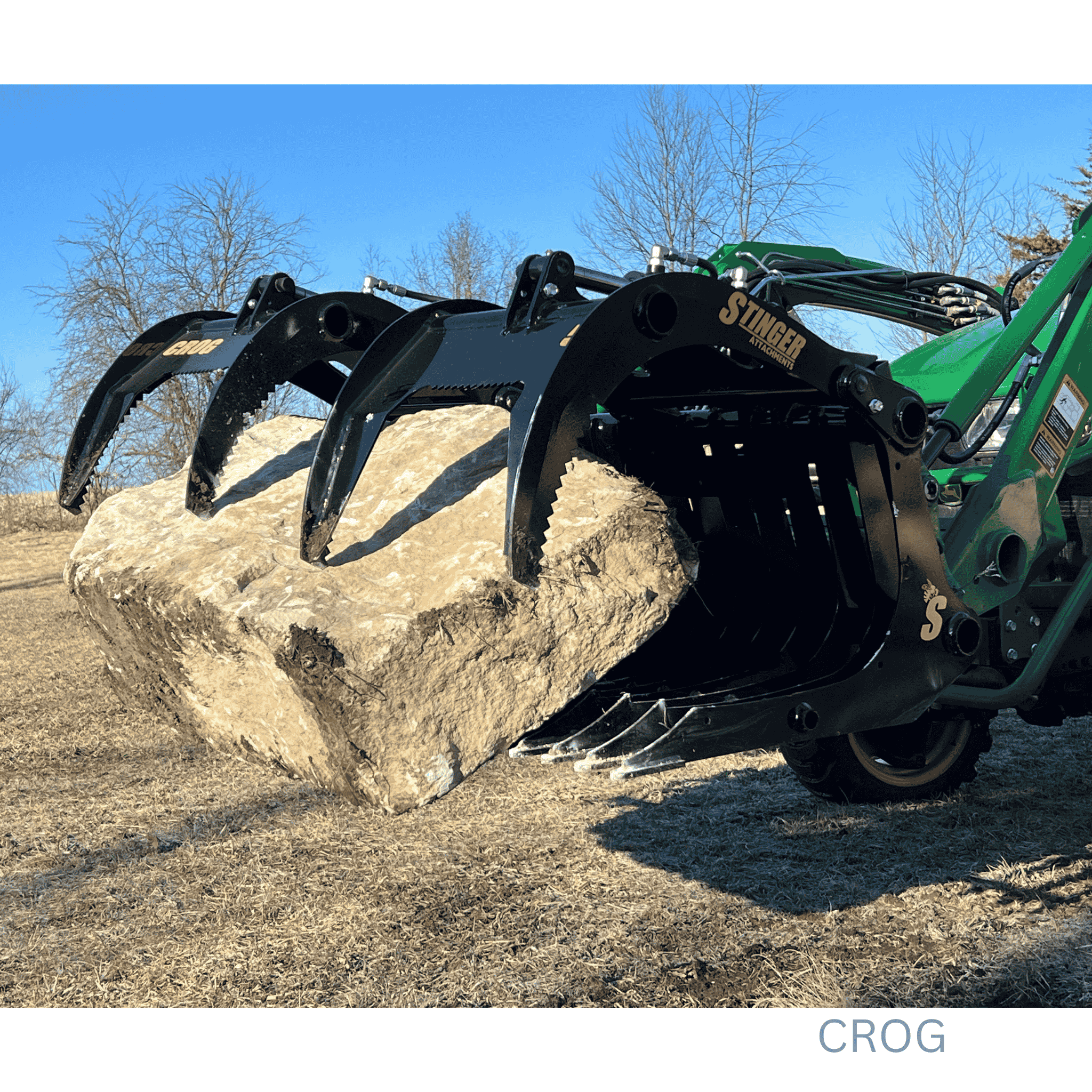

Compact Rock (CROG): The sifter. Features a tight 3" tine spacing and a 29" opening. Ideal for picking rocks, sifting dirt, and clearing underbrush without taking the soil with you.
⚙️ Technical Specifications
Steel Grade: AR200 (Abrasion Resistant)

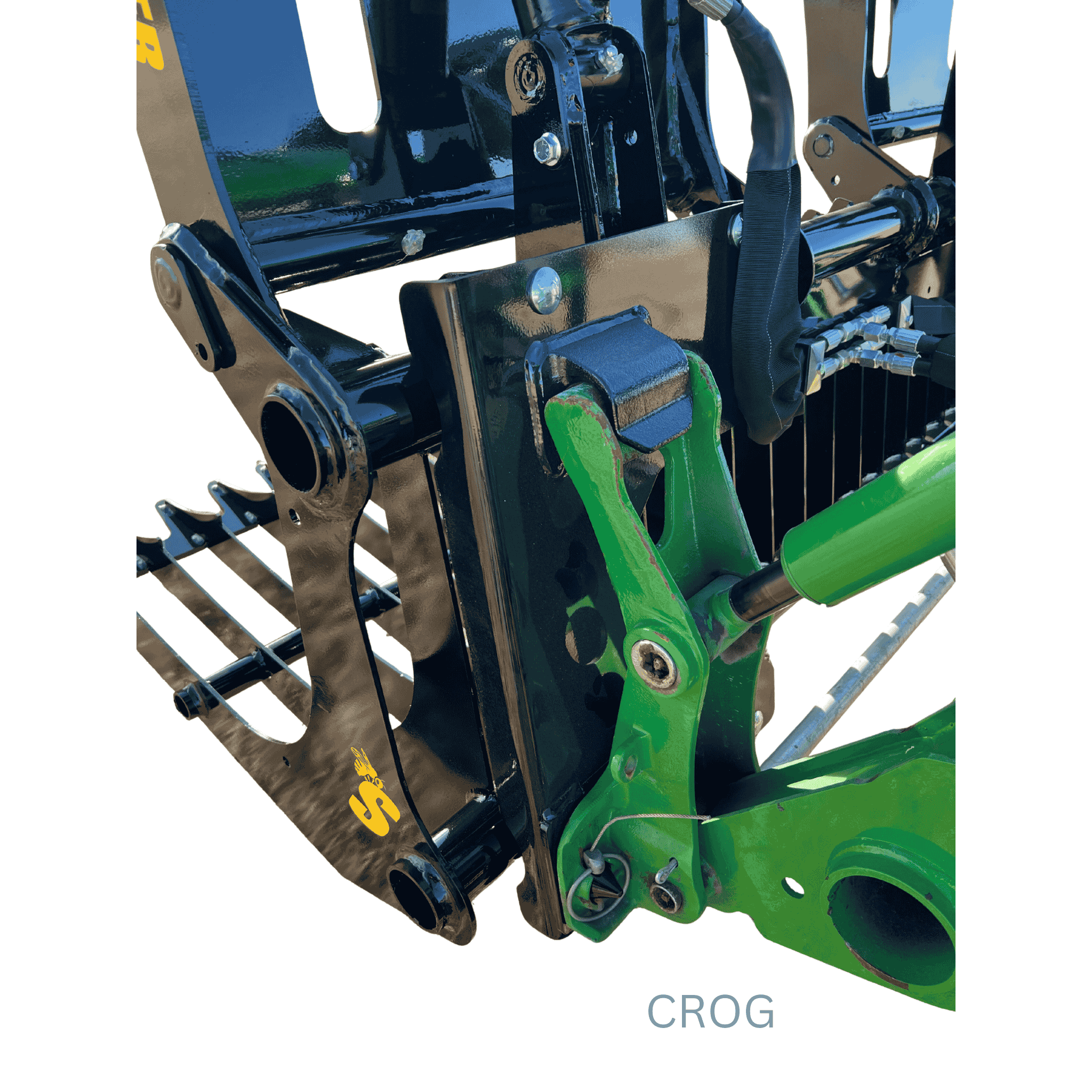

Mount Type: Interchangeable Bolt-On Interface
CCG Specs: 35" Opening | 9" Spacing | 2x6" Cylinders

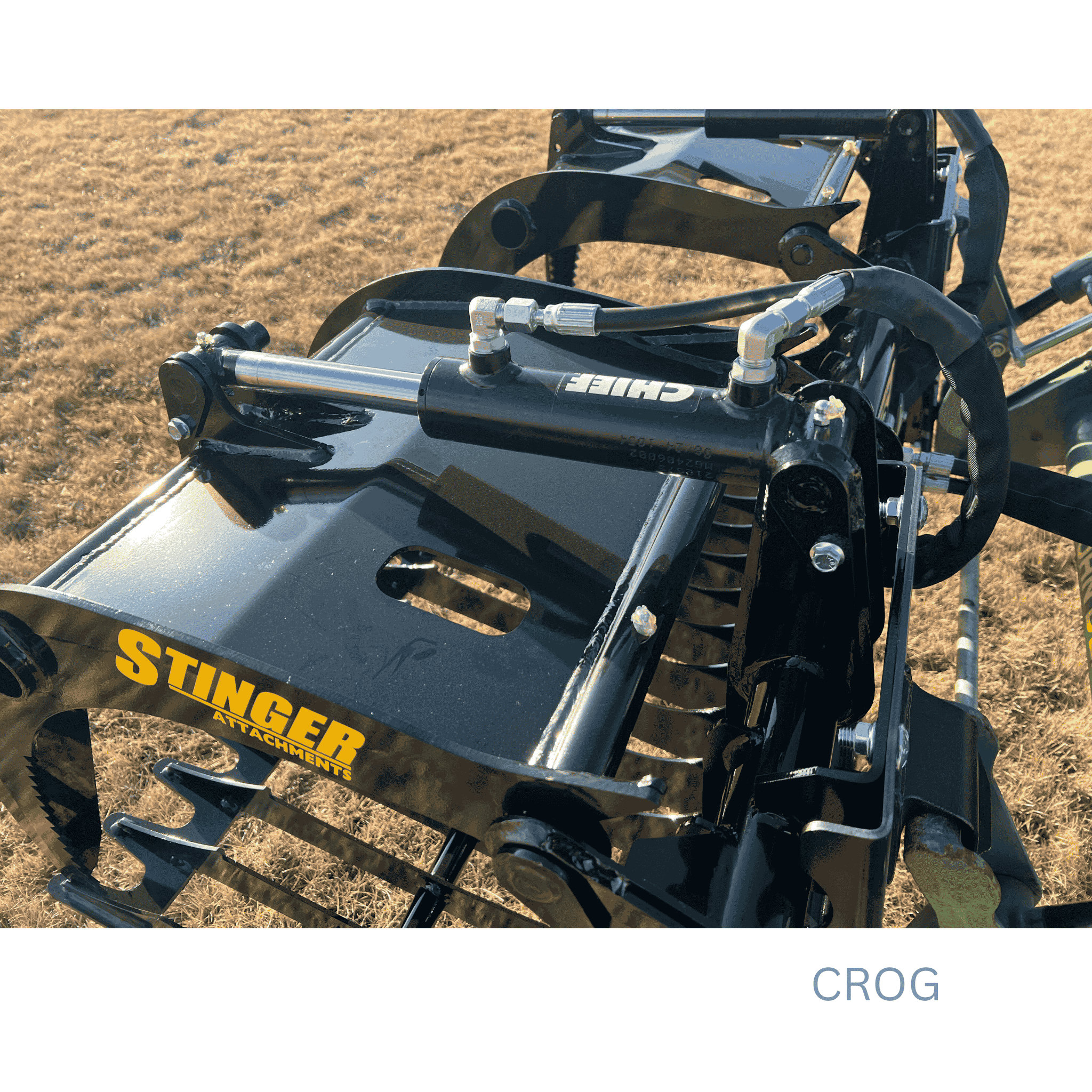

CROG Specs: 29" Opening | 3" Spacing | 3x10" Cylinders
Pivot Points: Greaseable 1" Pins
Warranty: 1-Year Structural
⚠️ Setup Requirement: Ballast & Mounts
Rear Ballast: Compact tractors MUST have proper rear ballast (box blade, loaded tires) to safely operate these grapples.
Mount Note: The 33" and 40" CROG models are available in Mini Skid Mount Only (Bobcat MT/Toro Dingo). They do not fit standard Skid Steer (SSQA) couplers.
✅ Machine Compatibility
1. Machine Class:
Designed for Compact Tractors (25-50 HP) and Mini Skid Steers.
2. Mount Options (Select in Menu):
Universal Skid Steer (SSQA): Standard Bobcat/Kubota style.
John Deere Hook & Pin: Fits JD 100-400/500 Series Loaders.
Mini Universal: Fits Toro Dingo, Bobcat MT100, Ditch Witch.
3. Hydraulic Check:
Requires Standard Flow (Plug & Play).
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 1-Year Structural |
| Max Operating Pressure | 3000 PSI |
| Shipping Dimensions (LxWxH) | 36x33x25 |
