Description
The Industry Standard: The Stinger Bigfoot Trencher is the go-to solution for Standard Flow skid steers. Whether you are running utilities at 3 feet or irrigation lines at 4 feet, the Bigfoot series delivers consistent power without requiring a High Flow machine.

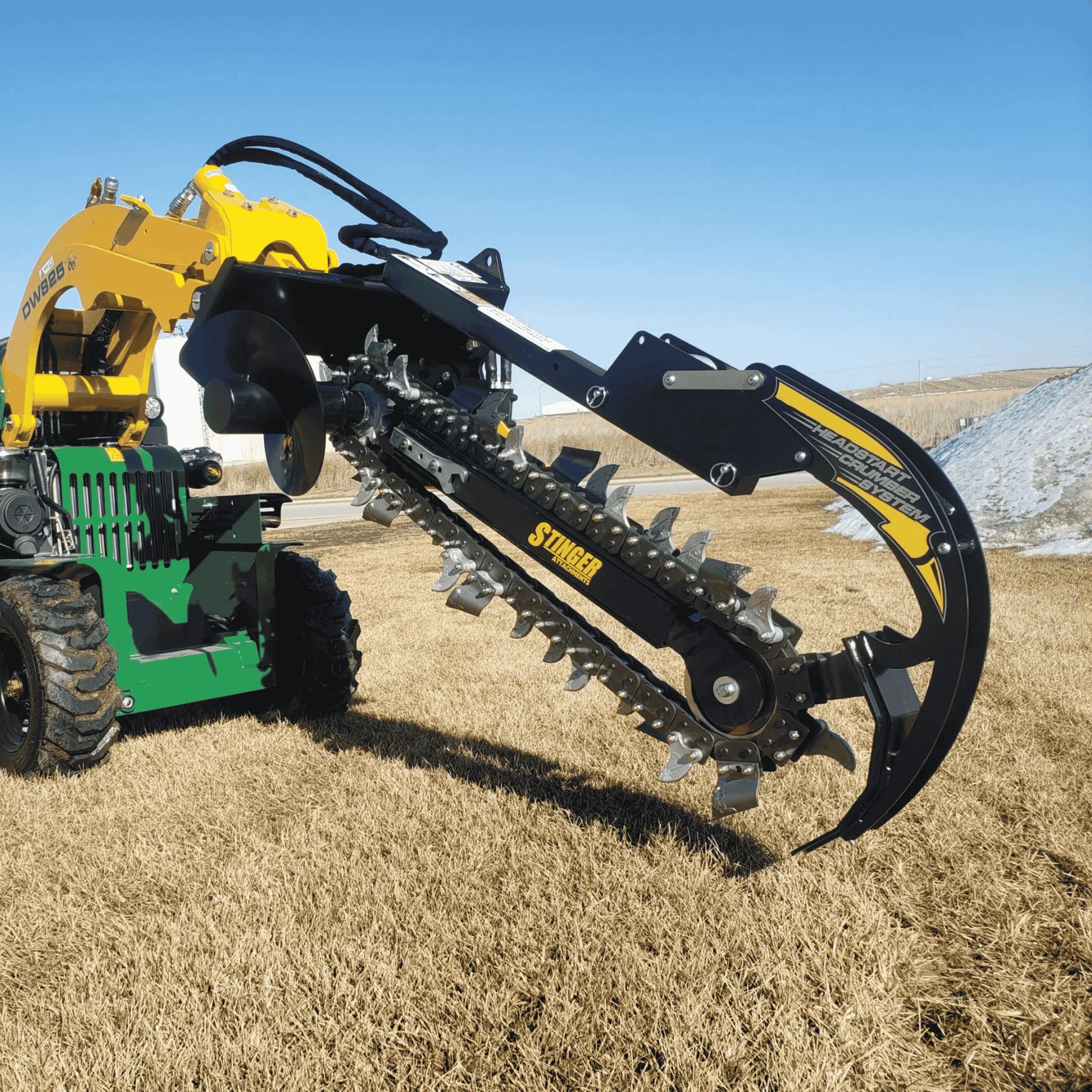

No More Manual Resets: The Bigfoot eliminates the most annoying part of trenching. With the Headstart Crumber System, the trench cleaner engages inside the trench. You never have to leave the cab to reset the bar. Combined with an Adjustable Skid Foot visible from the operator's seat, you can dig with precision and speed.
⚙️ Model Selection Guide
-
Standard 900: 3ft Depth | 13-25 GPM
Best for standard duty trenching. -
XD 900: 3ft Depth | 16-30 GPM
High Torque motor for tough ground. -
XD 1200: 4ft Depth | 16-30 GPM
Deep dig capability with High Torque power.
Warranty: 5-Year Gearbox / 3-Year Motor
Mount: Universal Skid Steer Quick Attach (SSQA)
⚠️ Flow Requirement
Standard Flow Only: These models are designed for 13-30 GPM.
If you have a High Flow machine (30+ GPM), do not use these models. Please view our "Bigfoot XD High Flow" listing to avoid damaging the motor.
✅ Chain Type Guide
1. Earth Chain (Cup Teeth):
Best for clean dirt, loam, and soft clay. Not for rocks.
2. Combo Chain (Cup + Tungsten):
The "All-Rounder." A mix of cup teeth to move dirt and tungsten teeth to chip rocks/roots. (Most Popular)
3. Diggatac Chain (Full Tungsten):
Aggressive rock teeth for hard-packed ground, shale, asphalt, and frozen soil.
Additional Specifications
| Mount Interface | Universal Skid Steer |
| Warranty | 5-Year Gearbox / 3-Year Motor |
| Required Flow Rate | 13 - 30 GPM |
| Max Operating Pressure | 3500 PSI |
| Shipping Dimensions (LxWxH) | 76x48x26 |
