Description
The "True Cut" Guarantee: Stinger Auger Bits are engineered for precision. While inferior bits wobble and create cone-shaped holes (wasting concrete), Stinger's True Cut Design ensures that a 12-inch auger drills exactly a 12-inch hole. Combined with Shallow Pitch Flighting, these bits remove spoil efficiently without clogging, even in sticky clay.
Select Your Soil Type:

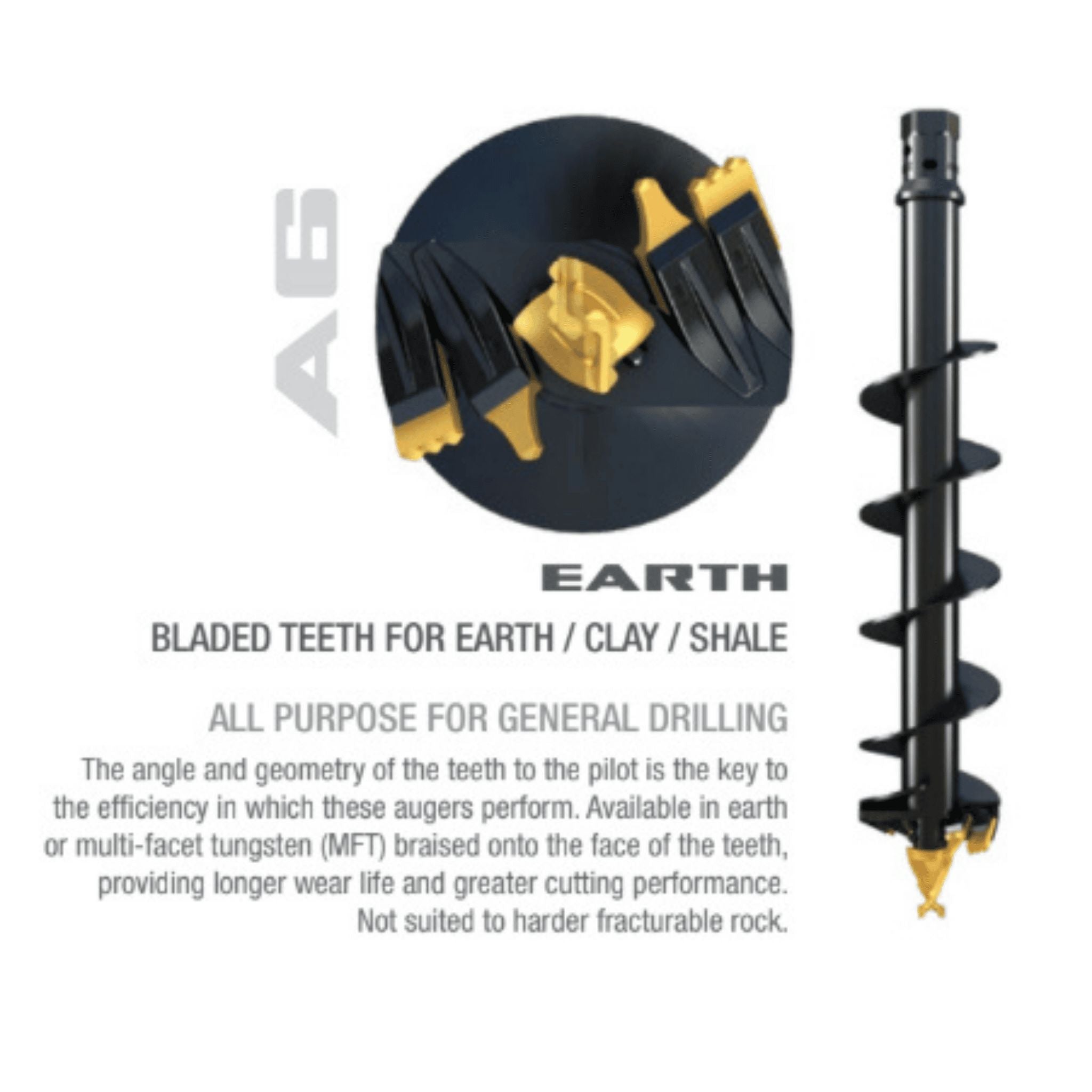

• A6 Earth Series: Features bladed teeth and a heavy-duty tube. Ideal for drilling dirt, clay, and shale.

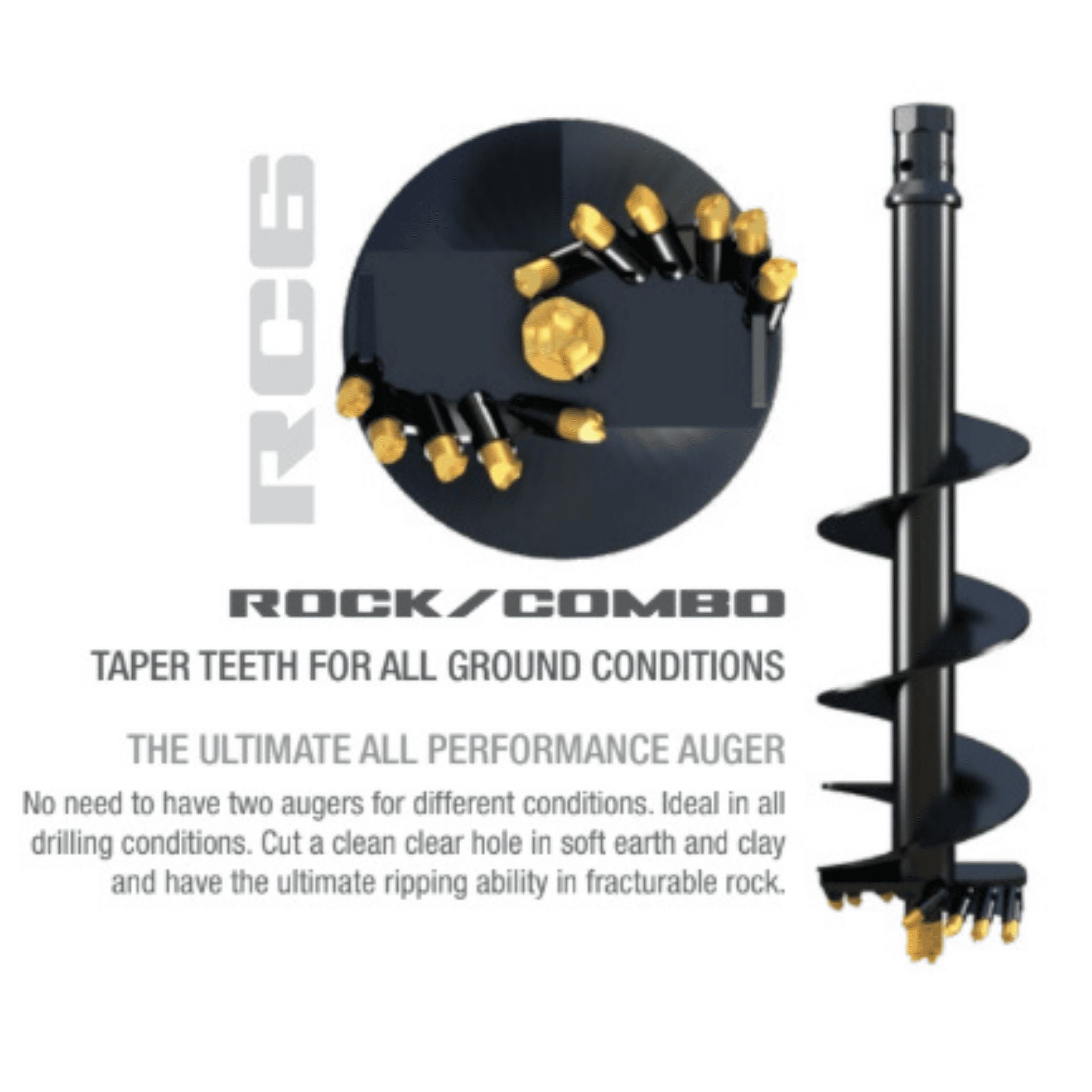

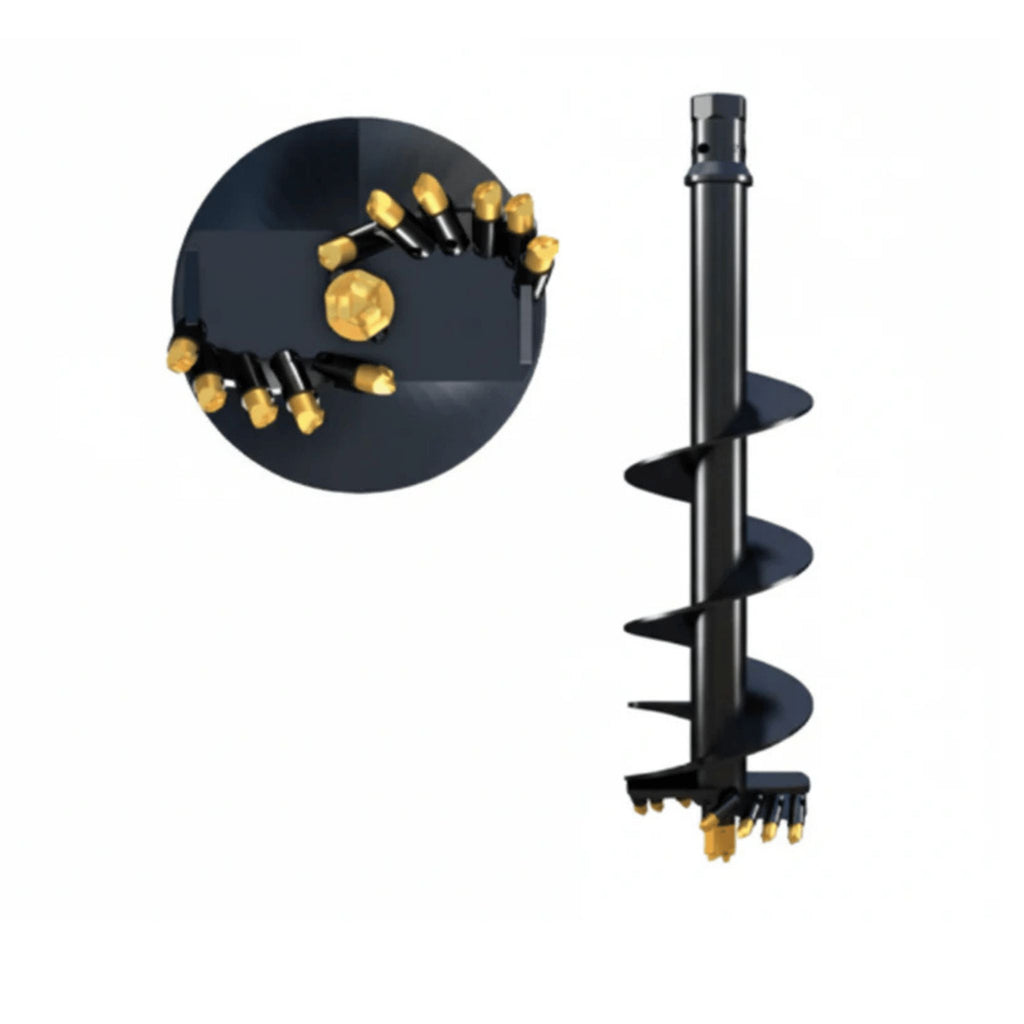

• RC6 Combo Series: The ultimate all-rounder. Equipped with Taper Teeth (Tungsten) to rip through mixed rocky ground and frozen earth.
• DR6 Rock Series: The heavy hitter. Features rotating Rock Picks and extra-thick 5/8" flighting to fracture solid rock and concrete.
⚙️ Technical Specifications
Overall Length: 60 Inches (5 ft)
Hub Size: 2.5" Hex (Standard) or 2" Hex (Optional)
A6 / RC6 Flights: 5/16" Thick
DR6 Flights: 5/8" Lead / 3/8" Carry (Heavy Duty)
Teeth Style: Bladed (A6) | Taper (RC6) | Rotating Pick (DR6)
Drill Speed (Earth): 55-65 RPM
Drill Speed (Rock): 10-25 RPM
⚠️ Critical Check: Hub Size
2" vs 2.5" Hex: These bits are available with either a 2" Hex or 2.5" Hex hub.
Please verify your Auger Drive's output shaft size before ordering. Stinger DSS Drives typically use 2" Hex.
✅ Series Recommendation
A6 Earth Series:
Best for: Loam, Clay, Sand, Shale.
Not for: Concrete or Large Boulders.
RC6 Combo Series:
Best for: Fracturable Rock, Frozen Ground, Asphalt, Compacted Gravel.
DR6 Rock Series:
Best for: Solid Rock, Concrete, Hard Shale.
Requires: High Down Pressure.
Additional Specifications
| Mount Interface | 2" Hex / 2.5" Hex |
| Warranty | 1-Year Structural |
| Shipping Dimensions (LxWxH) | 60x9x9 |
